Imaging Systems - TD-10 / EyeCAM Digital Camera & Image Filing Software

User-friendly ultra-high resolution digital imaging system with USB 3.0 connection and DICOM compatibility, realized with simple operation in combination with TD-10 digital camera and EyeCAM image & video filing software.

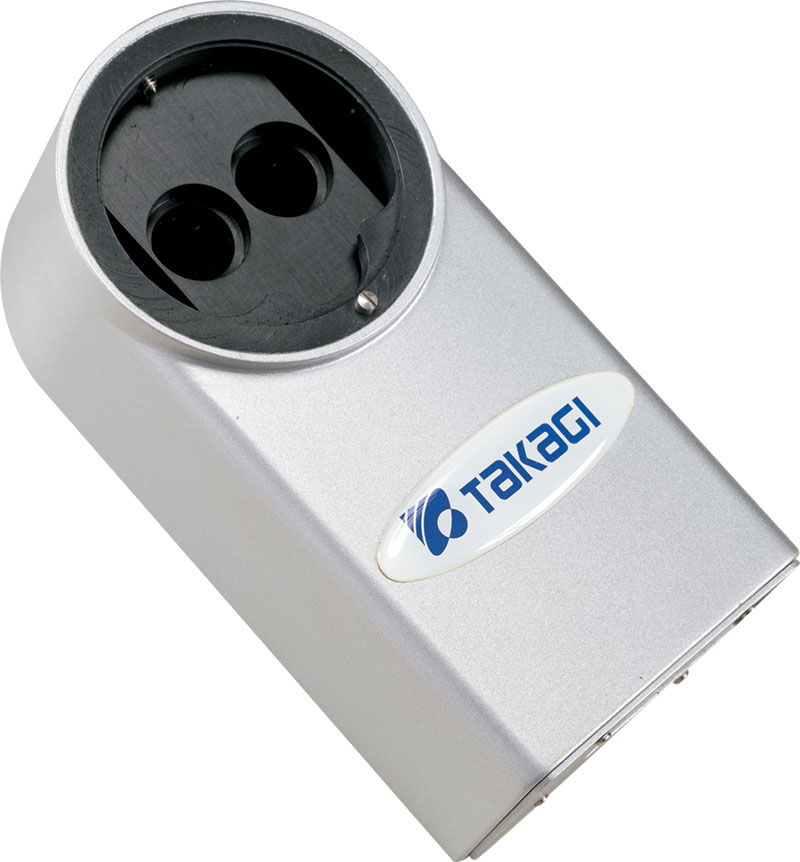

Use of Ultra High Resolution 10.7 Mega Pixel Camera

Use of Ultra High Resolution 10.7 Mega Pixel Camera with 3856 x 2764 picture size, delivering 7.4 times higher-resolution compared to the previous digital camera of TD-1plus.

USB 3.0 Connection Interface

By changing to the new USB 3.0 interface, data transfer speed is now approximately 6.4 times faster than that of the previous IEEE1394b fire-wire interface. Stress-free high-resolution live images are made possible with a high frame rate of 28 fps.

User Friendly Software with DICOM Compatibility

User friendly software with patient database, full image editing facility, and DICOM compatibility.

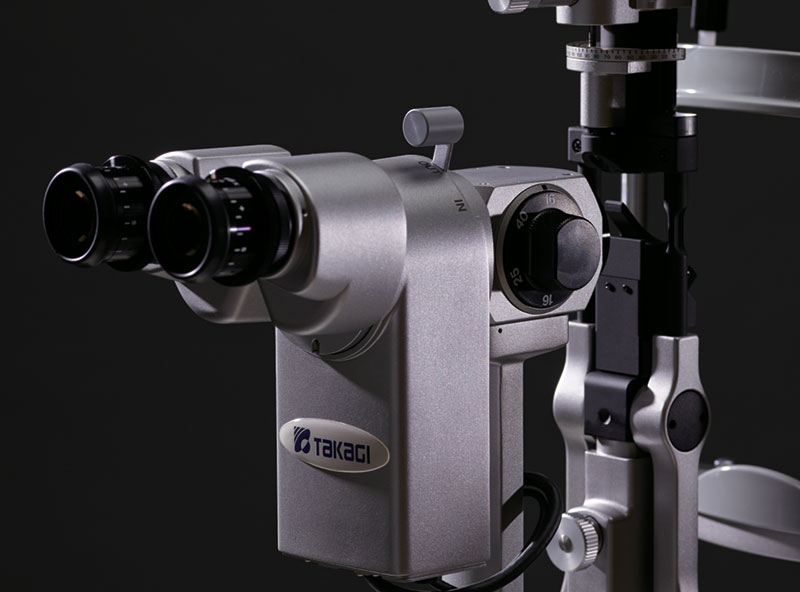

Slitlamp models compatible with TD-10 types

Compatible models Type GZL 700GL, 2ZL, 4ZL
Type XL 300XL



Features

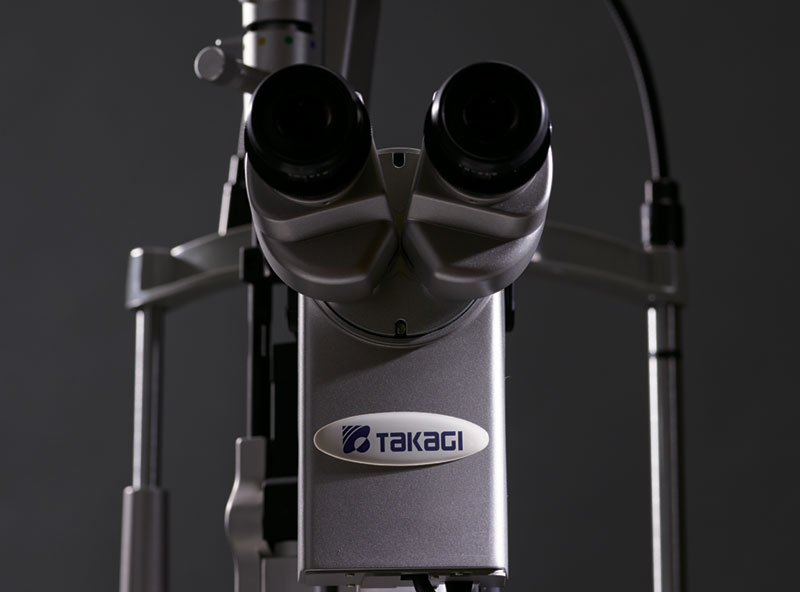

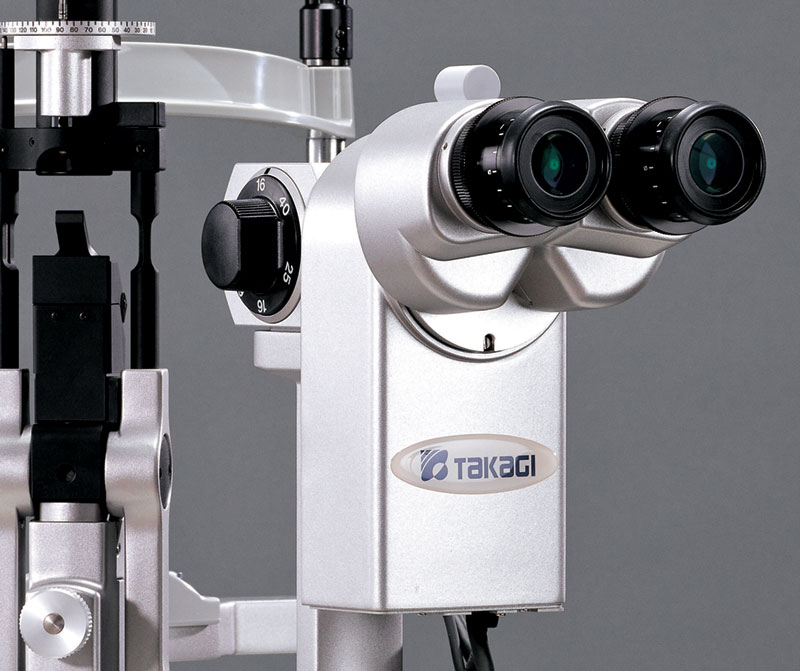

Neat Digital Imaging System with hidden cables

In combination with our LED slit lamps minimum cables for TD-10 are exposed as they can be quickly and neatly concealed in the slit lamp’s arm.

Yellow Filter Built-in as Standard

High-contrast images are easily obtained by using the built-in yellow filter for corneal fluorescein observation. In conjunction with our slit lamp’s cobalt blue filter even higher-contrast images can be achieved.

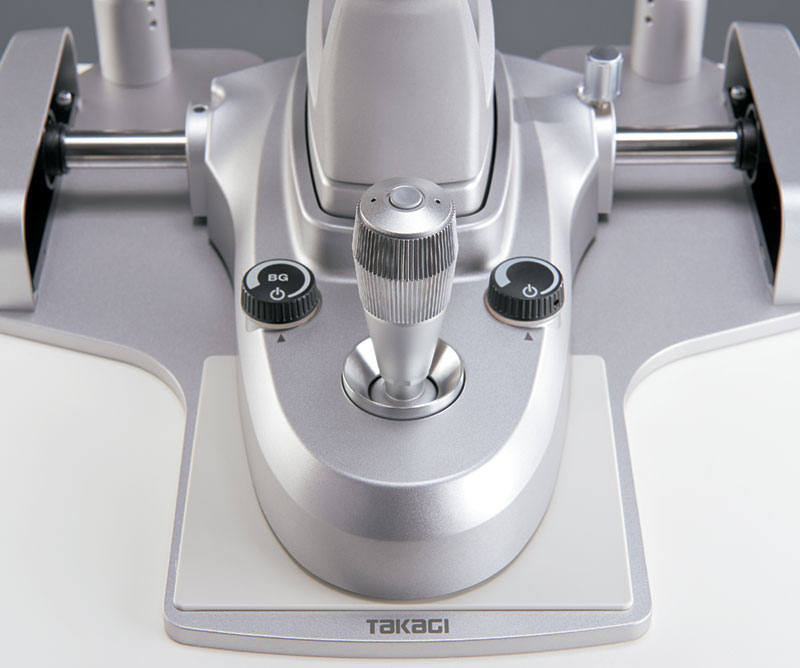

Capturing of Still Images with One Push

In combination with our supplied trigger cable, still images can be captured instantly and conveniently by pressing the joystick button of the slit lamp. Captured images can be displayed as thumbnail images in the lower part of the screen for evaluation.

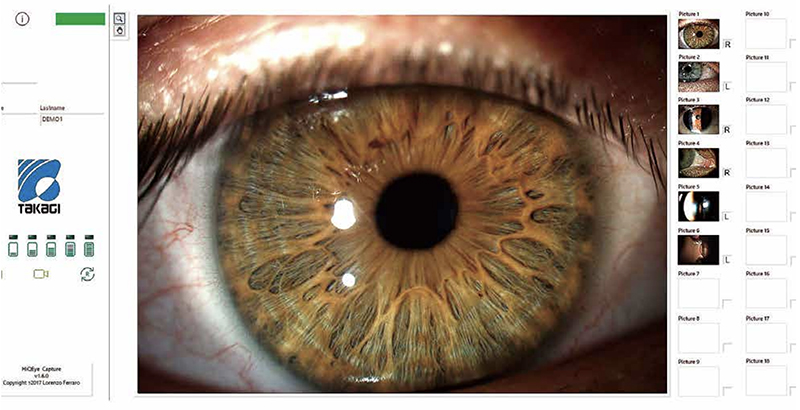

New EyeCAM Main Screen Design

The conventional image filing software & patient database have been further upgraded for more ease of use and intuitive handling by reviewing each icon while maintaining the convenient functionality.

Easy Capture with Six Pre-stored Eye Settings and Automatic Left/Right Eye Detection

Setting of the digital camera can be changed and saved easily with six types of scene files according to the eye condition and image type required. Use our pre-saved recommended settings or simply adjust each pre-set to your own desired level for very fast and convenient high quality image acquisition.
A left or right eye can be automatically detected by moving the joystick to the right and left and saved with each captured image.

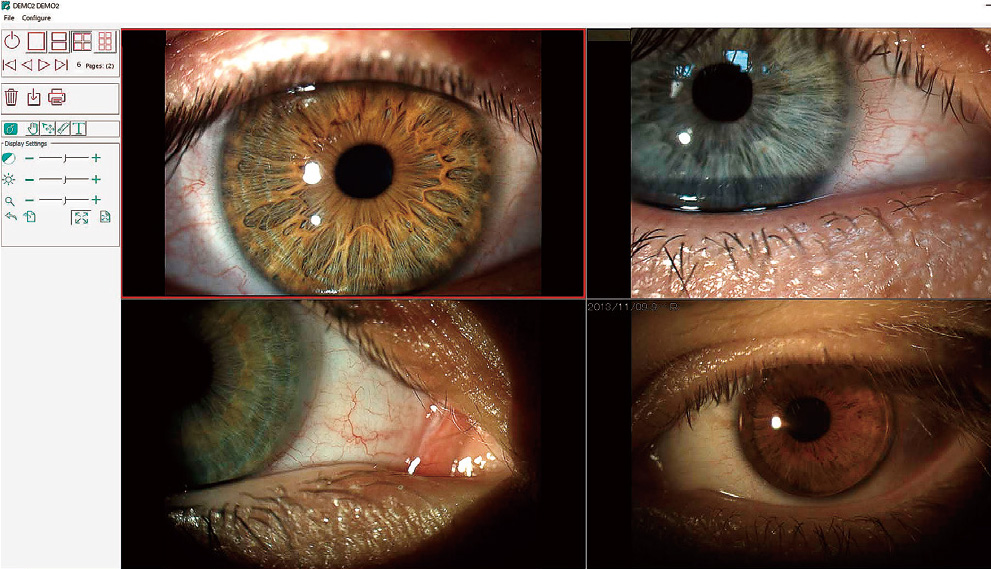

Convenient Comparison Functions for Follow-up Observation

The newly captured images and the images taken in past examinations can be displayed on the same screen. Up to six images can be displayed and compared at once.

Combination with Background Illumination System

In combination with our background illumination device, a more comprehensive explanation is made possible to the patient.

* Background illumination built-in as standard with 700GL and 4ZL models

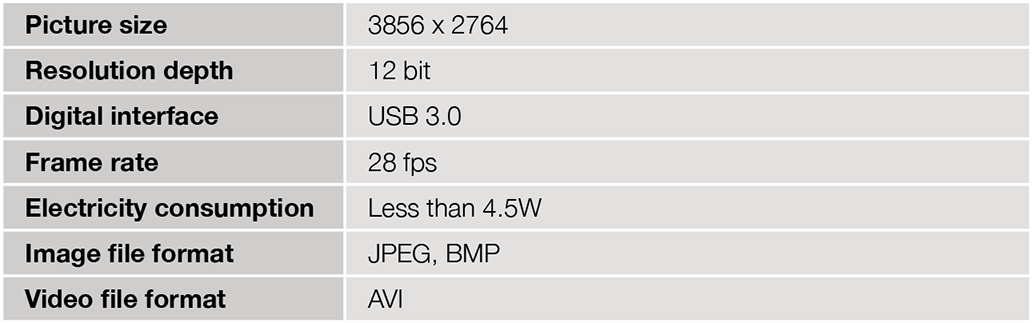

Camera Specifications

Camera Specifications

Picture size 3856 x 2764
Resolution depth 12 bit
Digital interface USB 3.0
Frame rate 28 fps
Electricity consumption Less than 4.5W

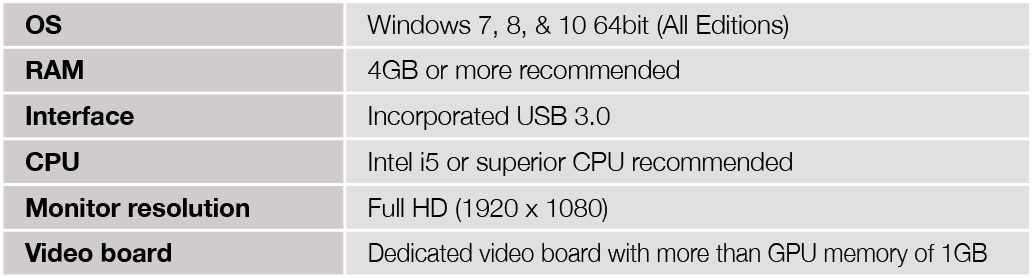

System Requirements

OS Windows 7, 8 & 10 64 bit (All Editions)
RAM 4GB or more recommended
Interface USB 3.0
CPU Intel i5 or superior CPU recommended
Monitor resolution Full HD (1920 x 1080)
Video board Dedicated video board with more than GPU memory of 1GB

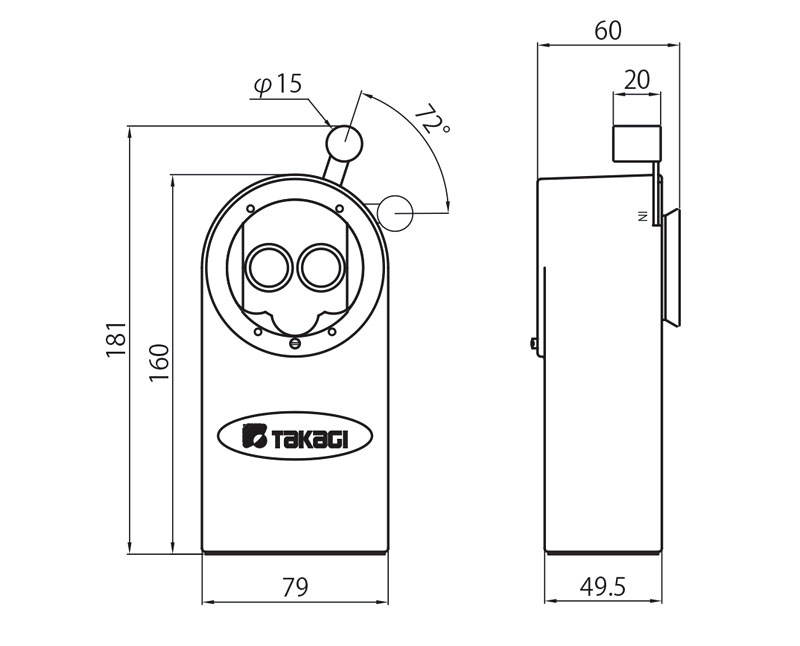

Dimensions

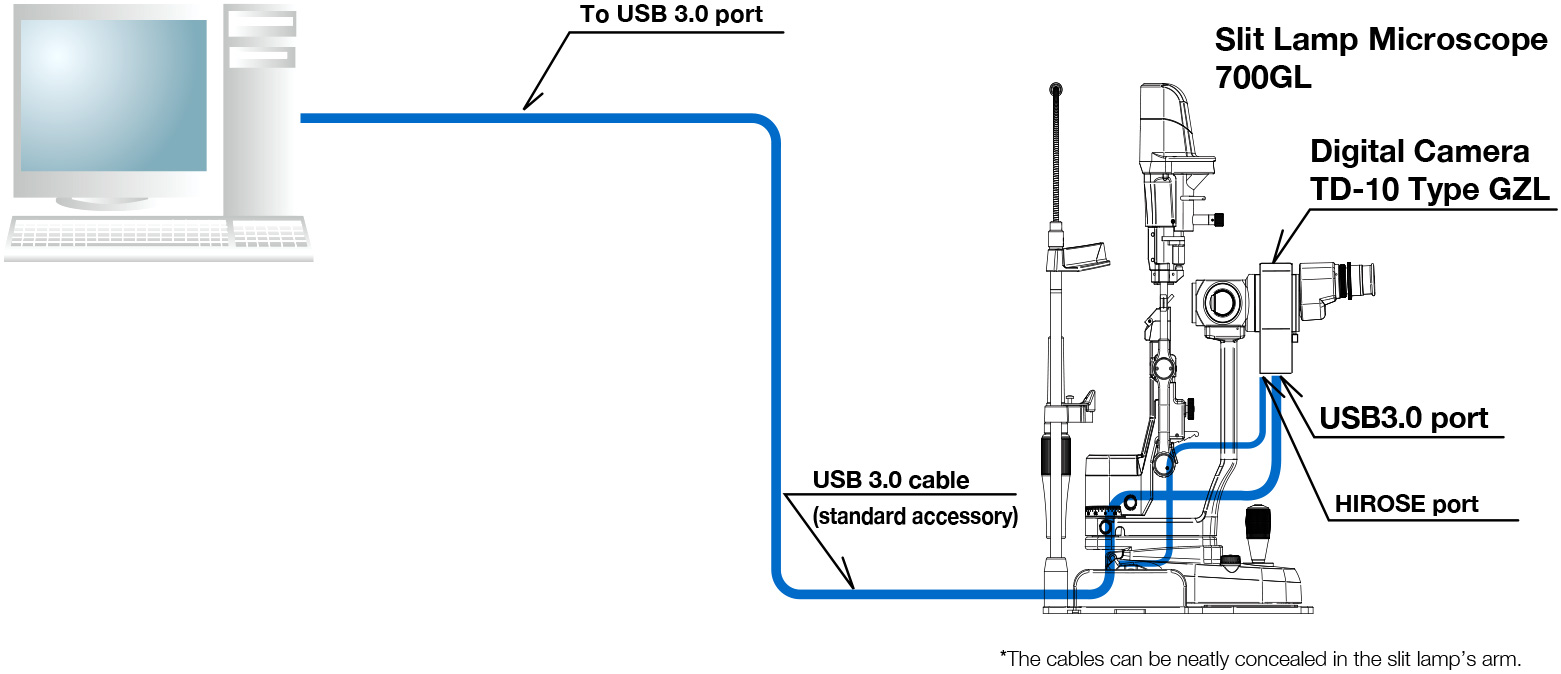

Optional Components
