The compact design allows for space-efficient use in outpatient environments with limited space. Furthermore, this model can be connected to either the left or the right side of the UN-21 Full Reclining Chair, making operations even more efficient.

When not in use, it can be folded to a compact size for storage.

By replacing the base with the O01-19 Flat Base, the unit can be positioned against a wall or with the base placed under a bed.
This allows procedures and surgeries to be performed safely and comfortably, even in confined spaces.

High-luminance and long-life LED light source

The illumination system uses high-luminance LED light to focus on contrast and colour reproduction. The service life is approximately 40,000 hours, minimising the need for bulb replacements and ensuring stable illumination.

*LED operating life is defined as a state when light intensity drops to 70%. The operating life of the LED used in OM-6 is approximately 40,000 hours, although this is not guaranteed.

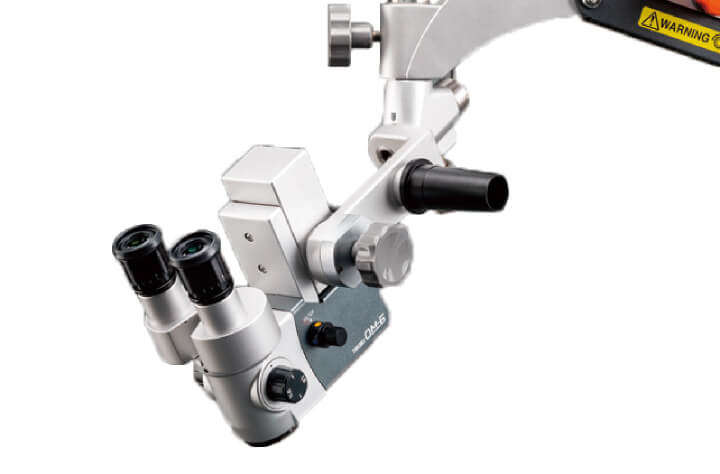

Eyepieces with a wide field of view

Ensures brightness and ease of observation to support precise surgical operations. The 3-step magnification, wide-field eyepieces provide a bright and wide field of view of 48mm/28.8mm/18mm in diameter, helping to facilitate out-patient procedures.

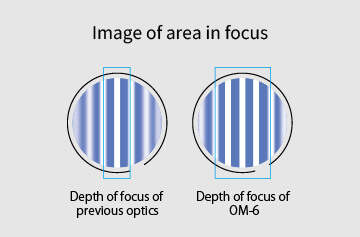

Deep depth of focus

The optimised optical design enables the microscope to focus over a wide area, eliminating the need for fine adjustments. This allows stereoscopic observations,
supporting precise procedures.

Designed for ease of control

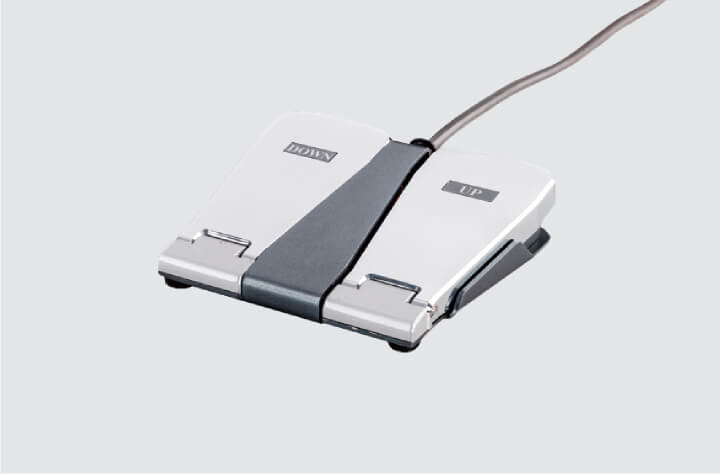

A tilted, easy-to-depress foot controller is adopted
to enhance operator comfort. High water and dust
resistance (IPX6) provides peace of mind even in
environments subject to splashing fluids.

Ergonomic design

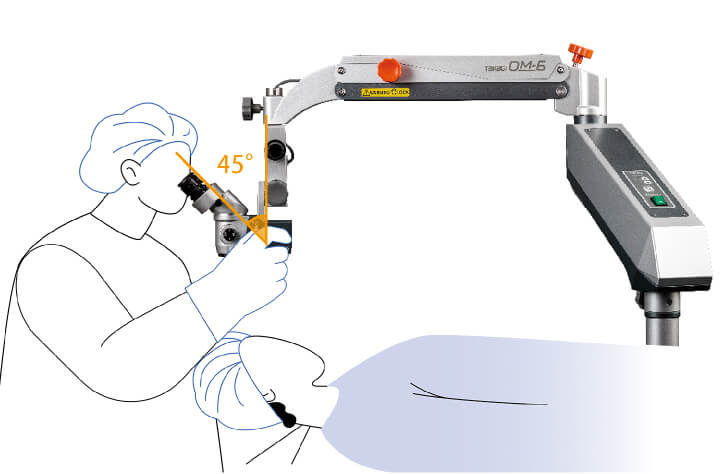

The 45-degree inclined binocular tubes help the surgeon keep a comfortable posture and maintain concentration for a long time.

The arm’s inclined shape ensures sufficient clearance to avoid contact with the patient’s body. This provides comfort and peace of mind during procedures or operations.

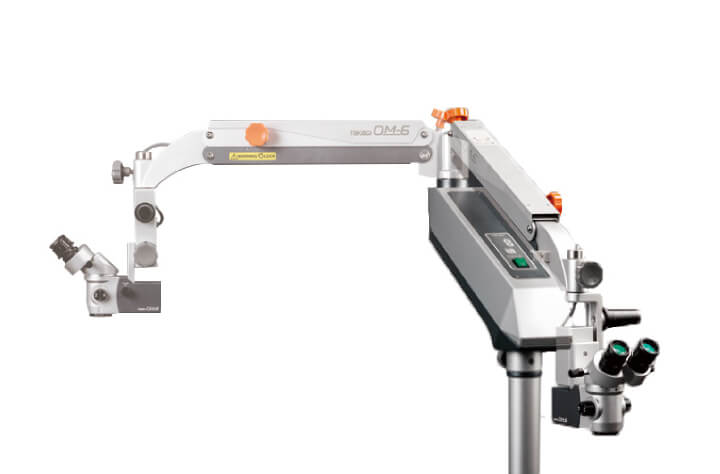

The arm can also be compactly folded, making it easy to move or store the OM-6. The design allows for flexible installation and operation even in limited space.

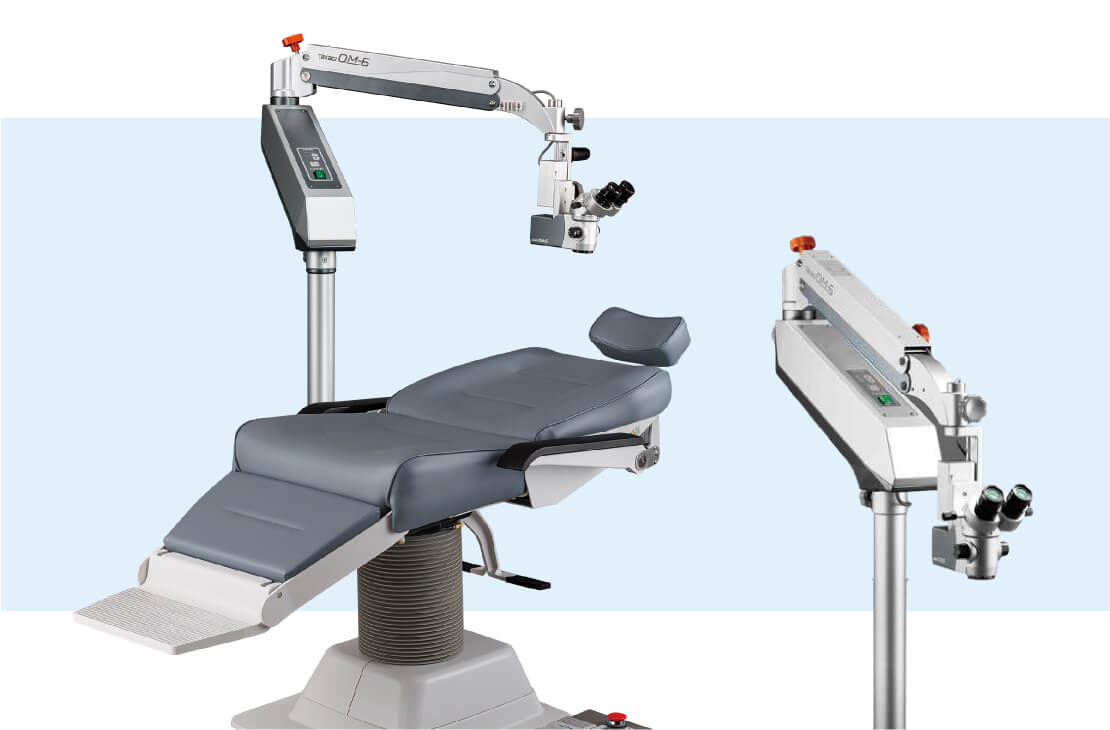

A wide variety of space-saving options are available to suit your specific environment.

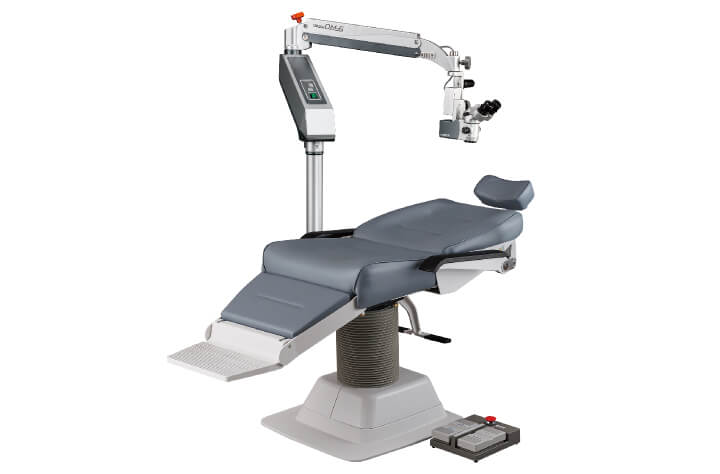

The U21-02 Connecting Arm can be used to link the microscope with the UN-21 Full Reclining Chair, making it possible to use in confined spaces. The Connecting Arm can be mounted on either the left or right side of the UN-21, allowing for flexible installation according to room layout and workflow.

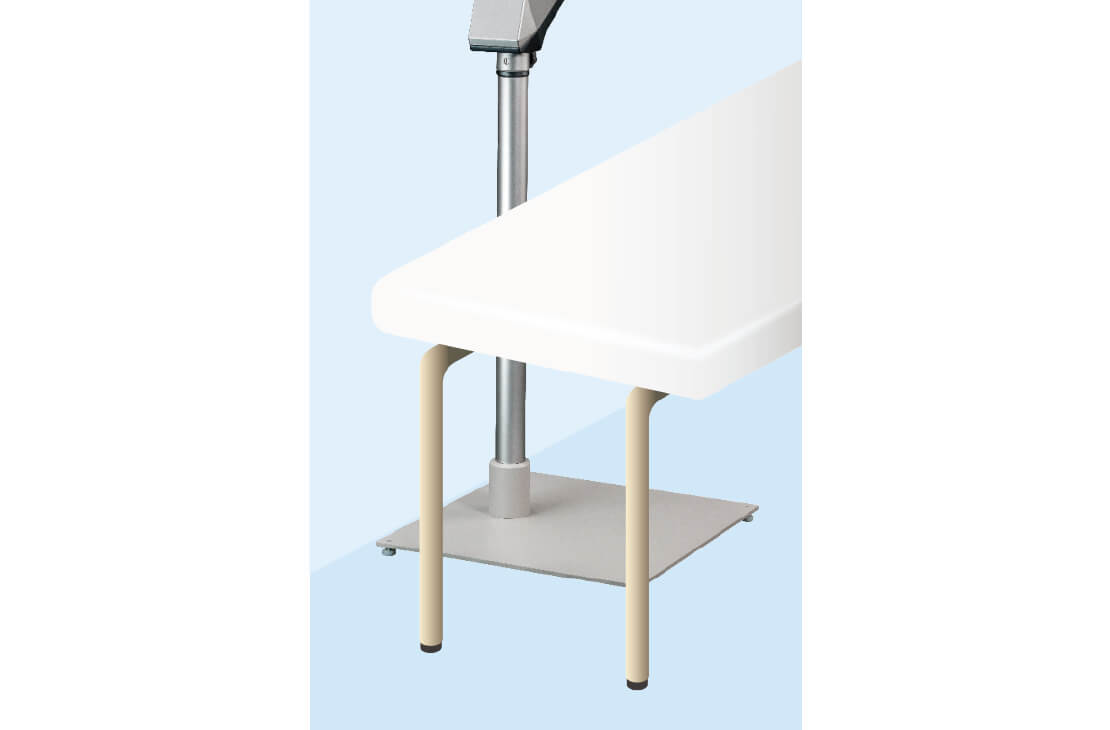

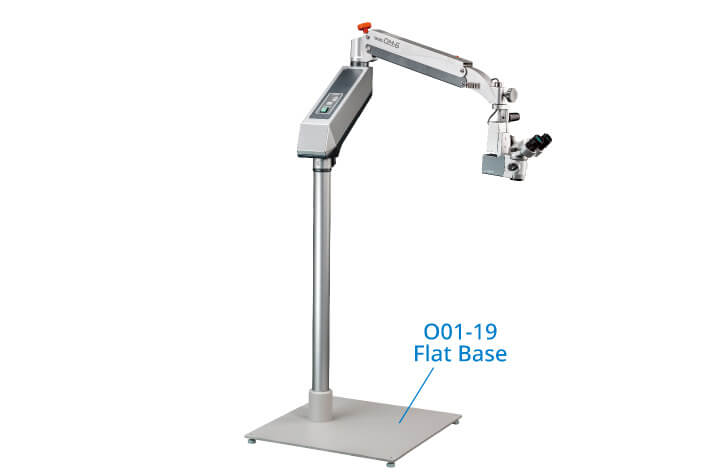

Replacing the base with the O01-19 Flat Base allows installation flush to the wall, and placing the base unit under the bed ensures safe and comfortable procedures or operations even in tight spaces.

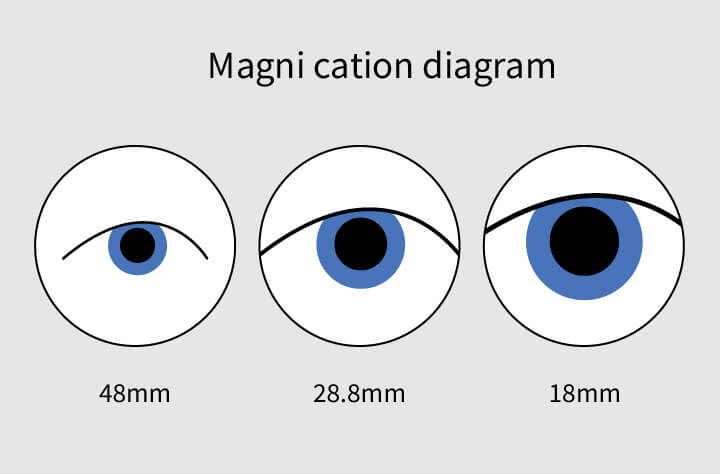

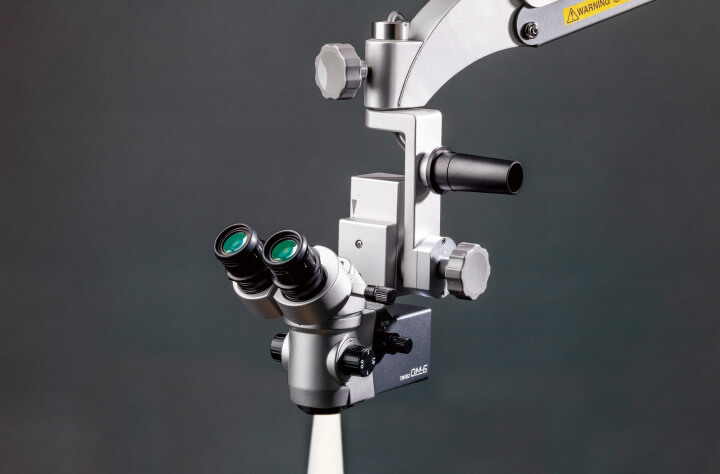

The combination of a three-step magnification system and wide-field eyepieces allows selection of actual fields of view with diameters of 48 mm, 28.8 mm, and 18 mm. The design makes it easy to secure a wide field of view, making it ideal for procedures or surgeries where comprehensive awareness of the entire visual field is required.

With an objective lens of F = 200 mm, the deep depth of focus makes it easy to keep the entire visual field in focus during procedures or operations. This allows continued observation with minimal focus deviation, even when the target area moves slightly.

The illumination system adopts high-intensity LED for direct lighting. While ensuring the visibility needed for observation, it also comes standard with a heat protection filter and blue correction filter, reducing potential effects of LED heat and blue light on the patient’s eyes.

Furthermore, blue and green filters are also included, enabling wavelengths of light tailored to the observation purpose.

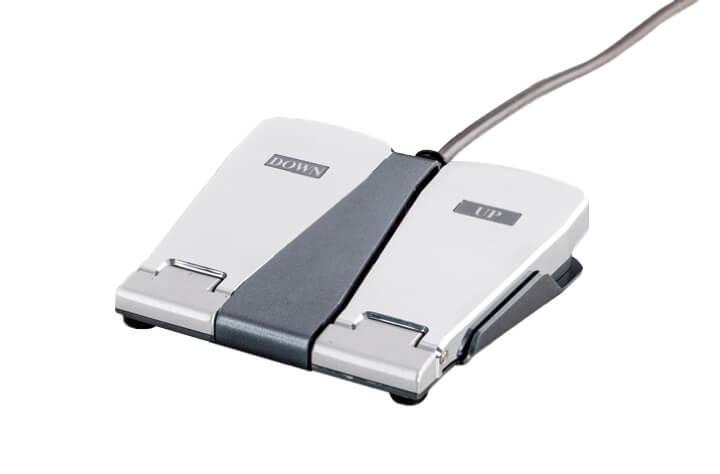

The foot controller is optimised for frequent focus adjustment, enabling intuitive operation even during procedures or operations. Its angled design makes it easy to press and allows smooth control.

It features waterproof and dustproof performance (IPX6), ensuring safe use even in environments where liquids may splash.

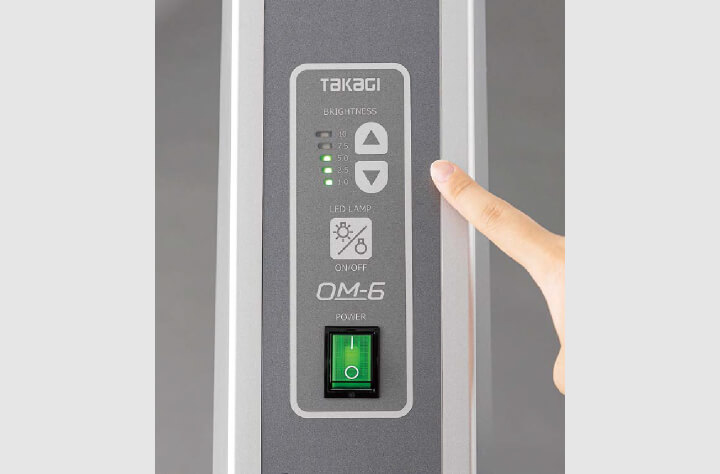

Light intensity can be easily adjusted from the control panel, allowing smooth lighting settings based on the situation.

*Image with Straight Binocular Tube S01-14 and Inclined Coupling O07-17 attached.

To support procedure and operation recording and information sharing among staff, optional accessories such as the O08-21 TV Camera Adapter and the O11-03 Beam Splitter are available.

Combining the S01-14SE Straight Binocular Tube with the O07-17 Inclined Coupling allows adjustment of the microscope’s viewing angle, providing greater flexibility of posture during procedure. The design supports creation of an optimal environment tailored for your specific situation.
