Serving Your Vision

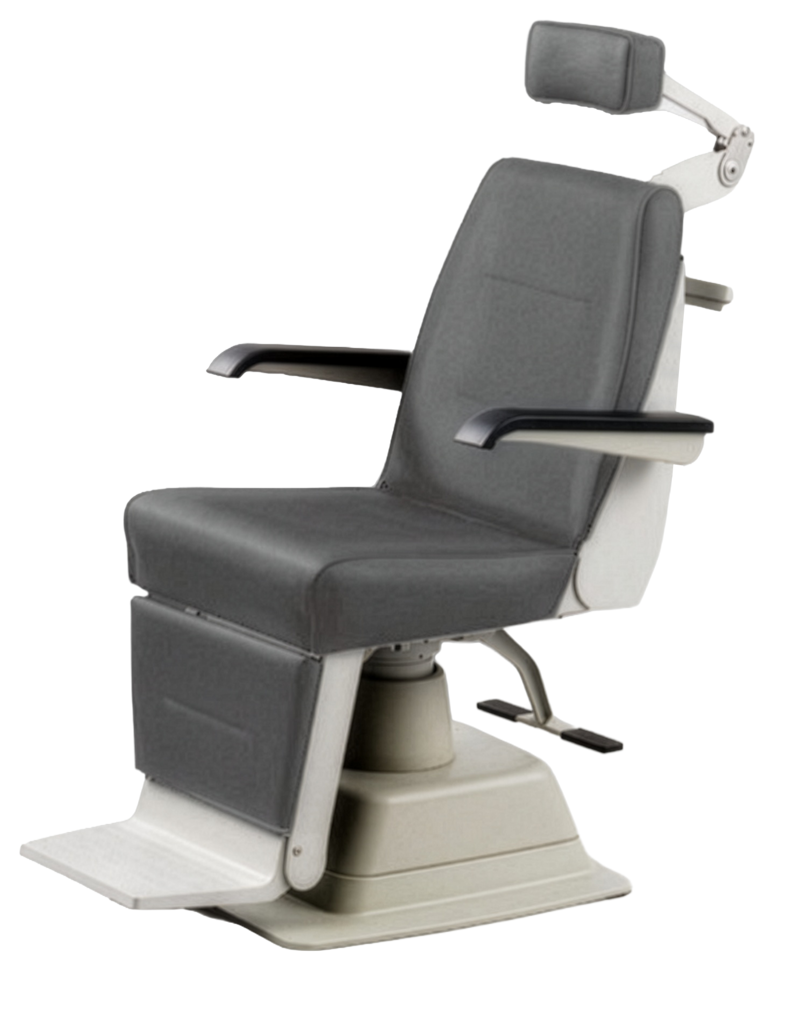

Ophthalmic Furniture - UN-15 Ophthalmic Chair

Takagi’s technique and experience realized a reclining chair 45mm lower than previous models. We promise satisfaction throughout the wide range of positions this chair is designed to accommodate.

  • A pneumatic-assisted manual recline mechanism uses patient weight for effortless patient adjustments.
  • Recline capability includes both a completely flat position and a partial, seat-back only recline.

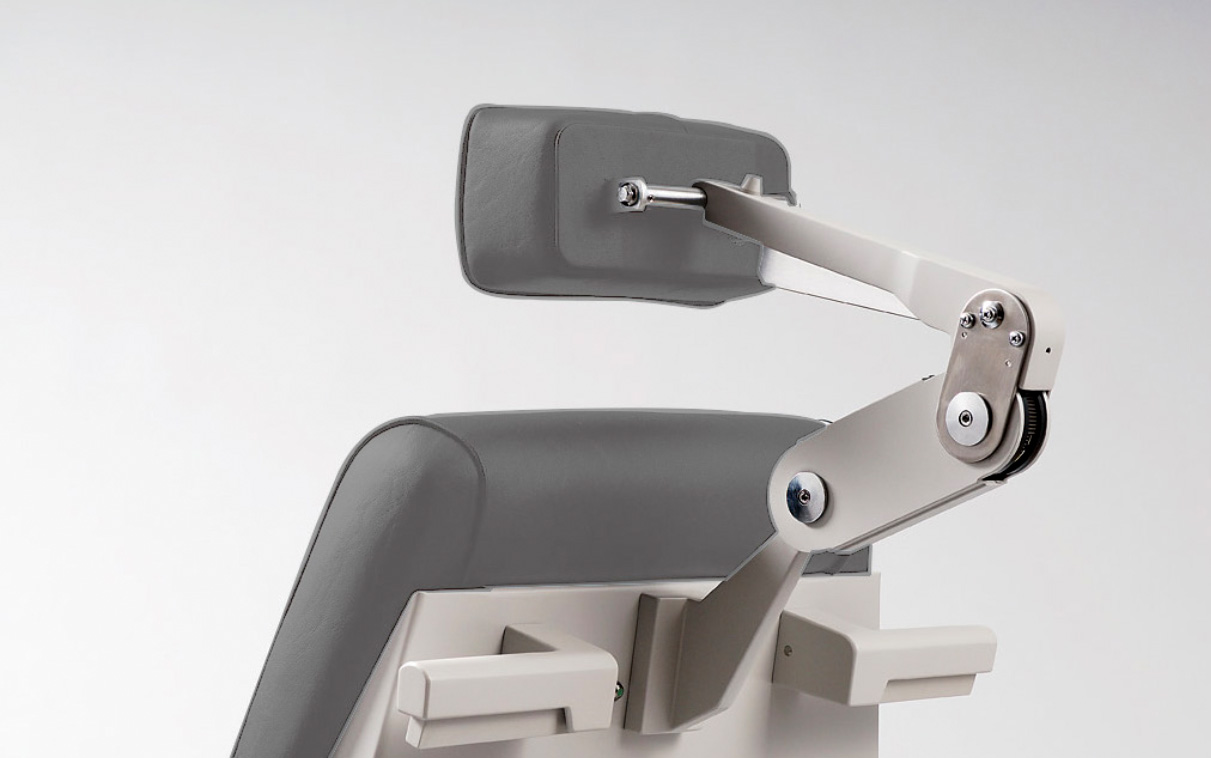

  • A single-armed headrest is standard with UN-15, and our unique lock indicator assures that the headrest is firmly and securely in position.
  • TAKAGI standard fail-safe hydraulic system provides smooth elevation using a foot switch.

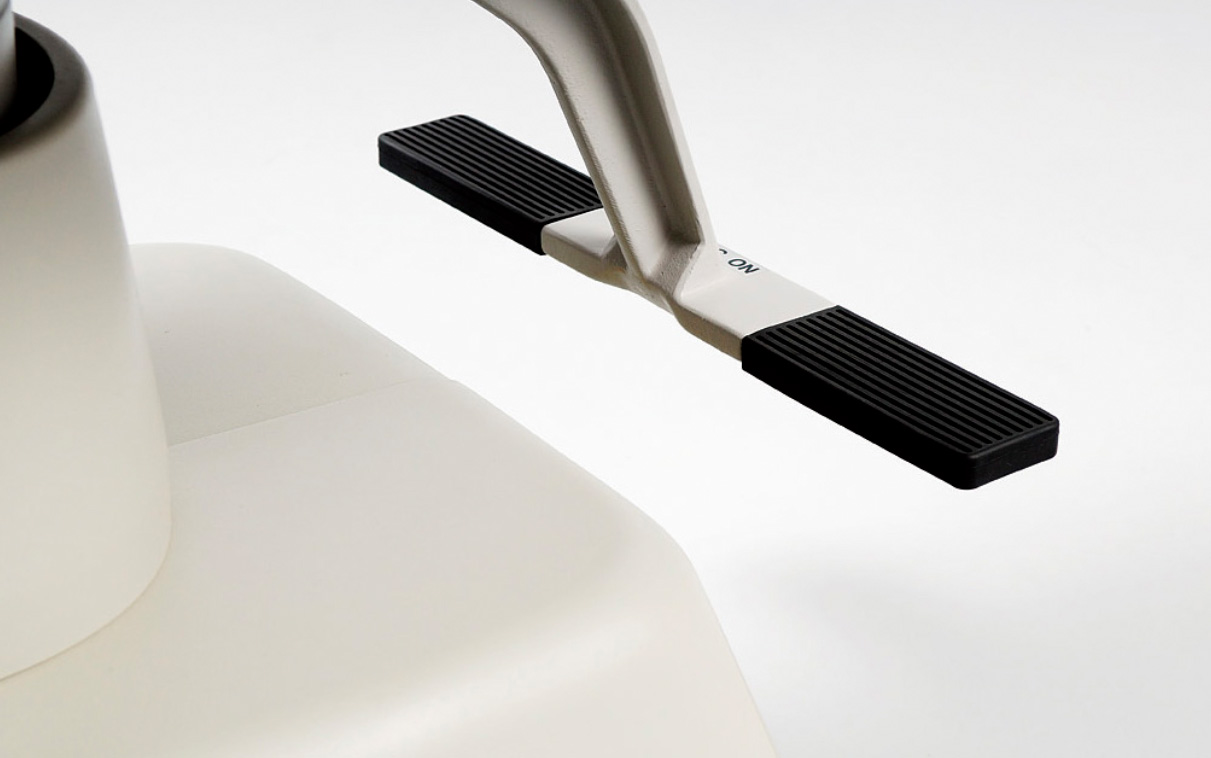

  • Includes the foot-activated rotation lock.

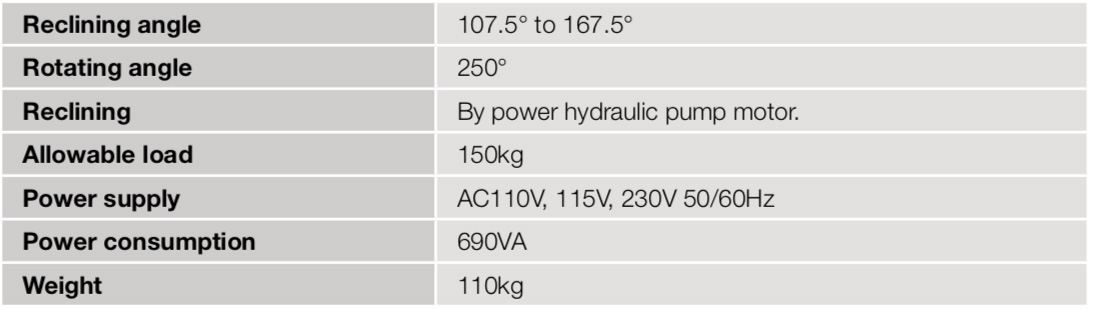

Major Specifications

Reclining Angle 107.5° to 167.5°
Rotating angle 250°
Reclining By power hydraulic pump motor.
Allowable Load 150kg
Power Supply AC110V, 115V, 230V 50/60Hz
Power Consumption 690VA
Weight 110kg

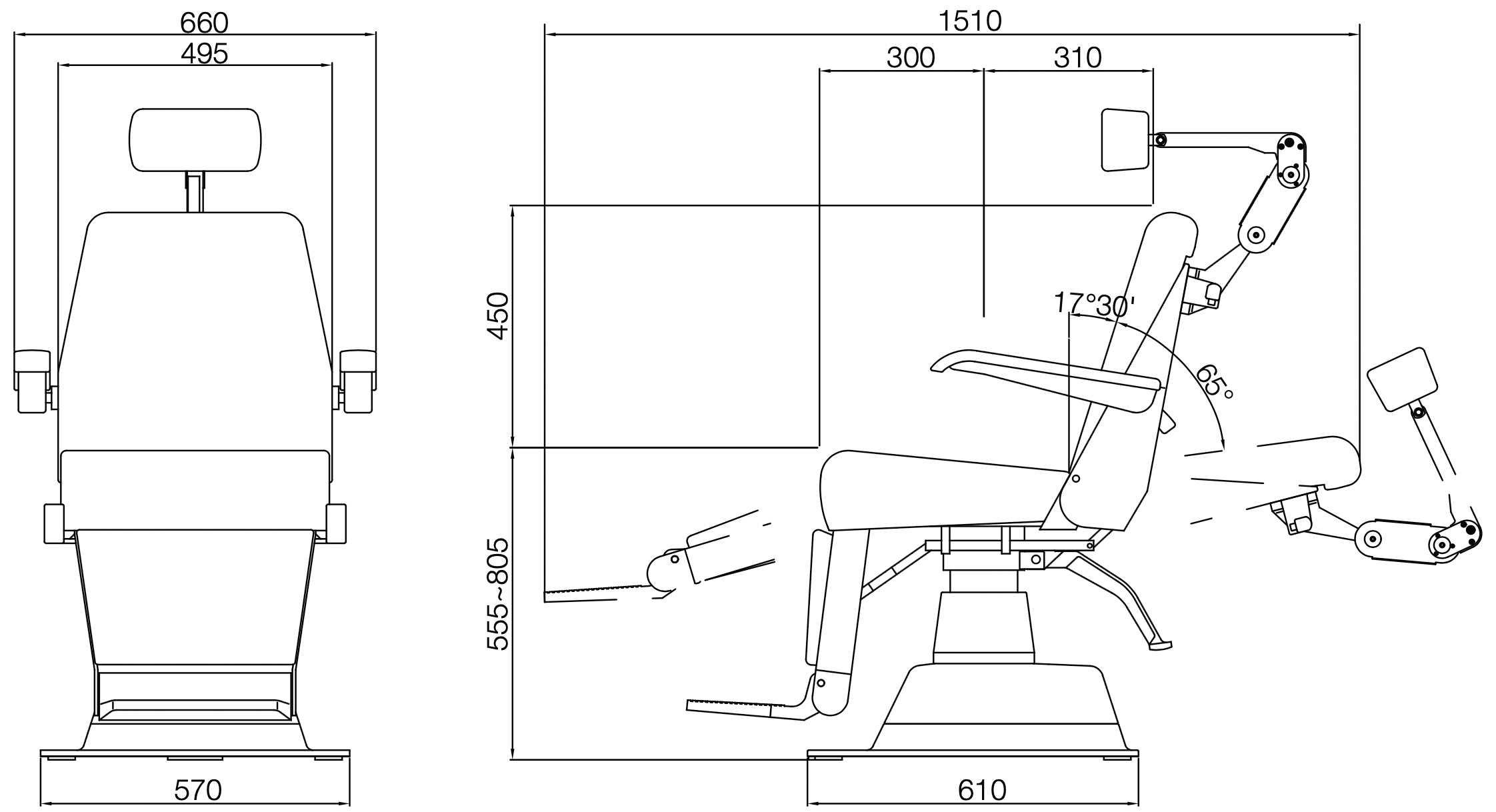

Dimensions
