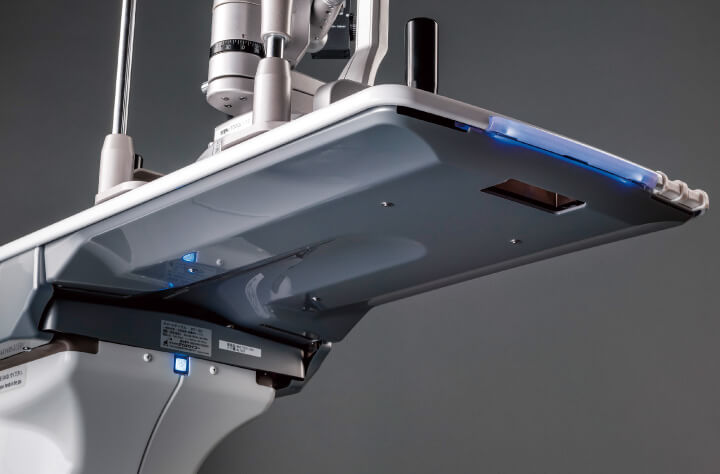

Safety switch

The underside of the table is fully covered to prevent exposure of mechanical components. The entire cover functions as a safety switch, helping to prevent pinching and accidental contact. It also helps prevent clothing from being stained by machine oil and supports cleanliness in the examination room.

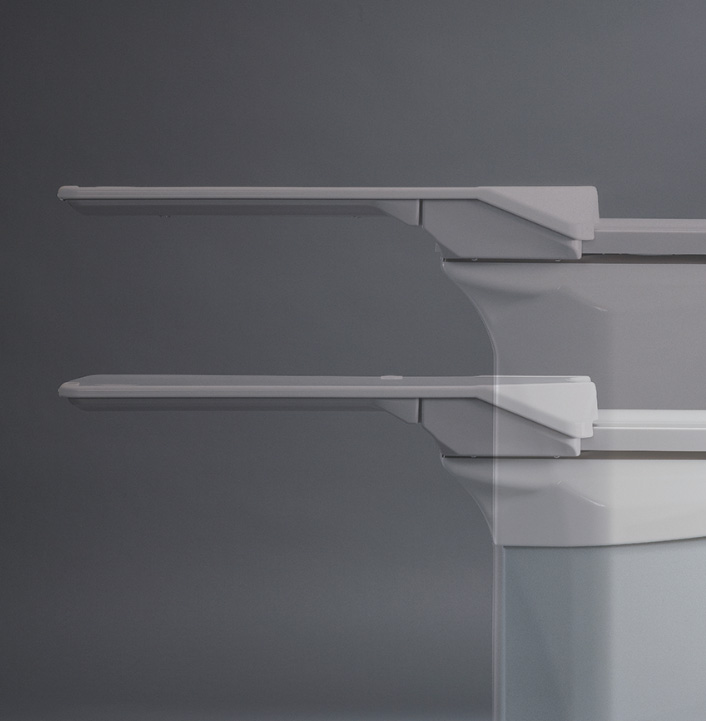

Thin tabletop design

The thin design ensures ample space beneath the table, helping reduce the risk of contact with hands or thighs and contributing to reduced physical strain during examinations.

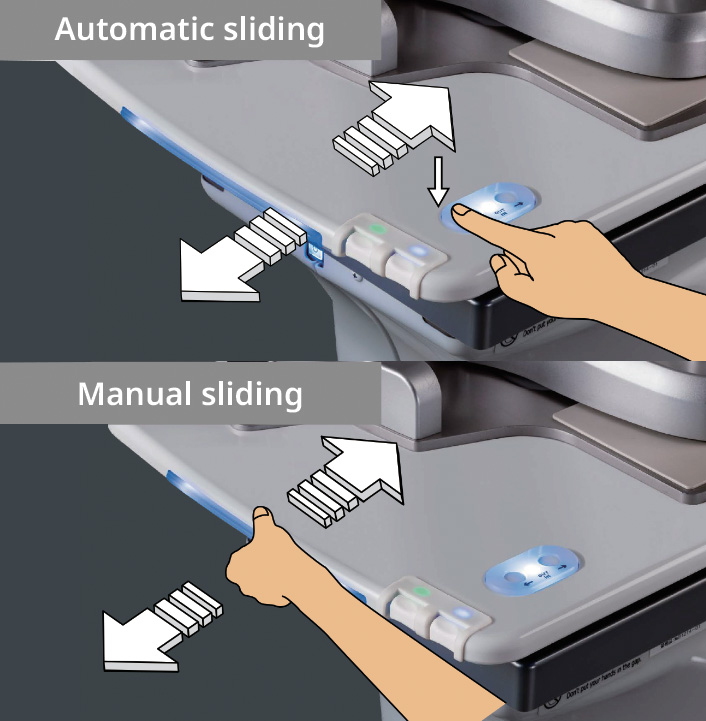

Auto slide / manual slide

Automatic or manual slide methods can be selected depending on the examination situation and patient condition.

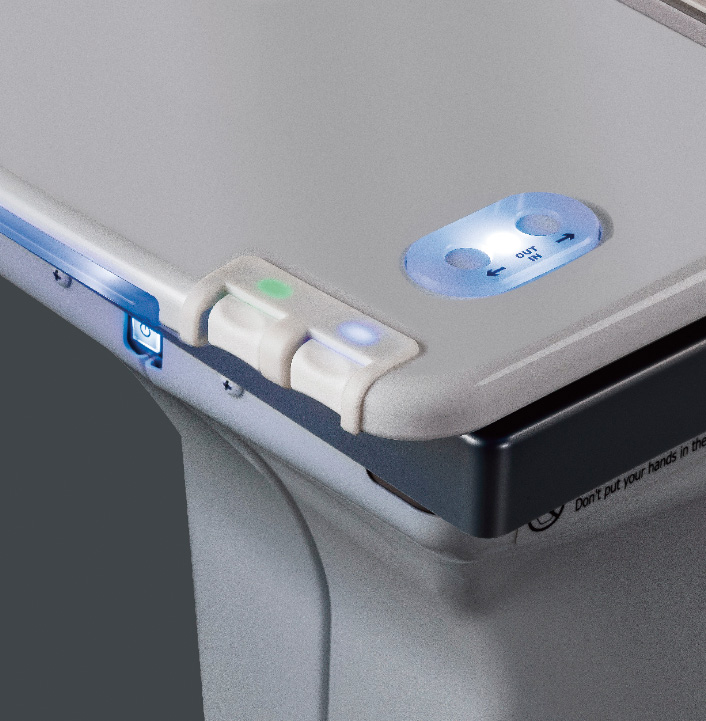

Chair elevation switch

The table provides power and vertical movement control for the patient chair, supporting a smooth clinical workflow.

*Compatible model: CR-750S Motorized Patient Chair and UN-21 Full Reclining Chair. *CR-750S comes standard with a cable. Please see the Accessories in the brochure for UN-21 cable.

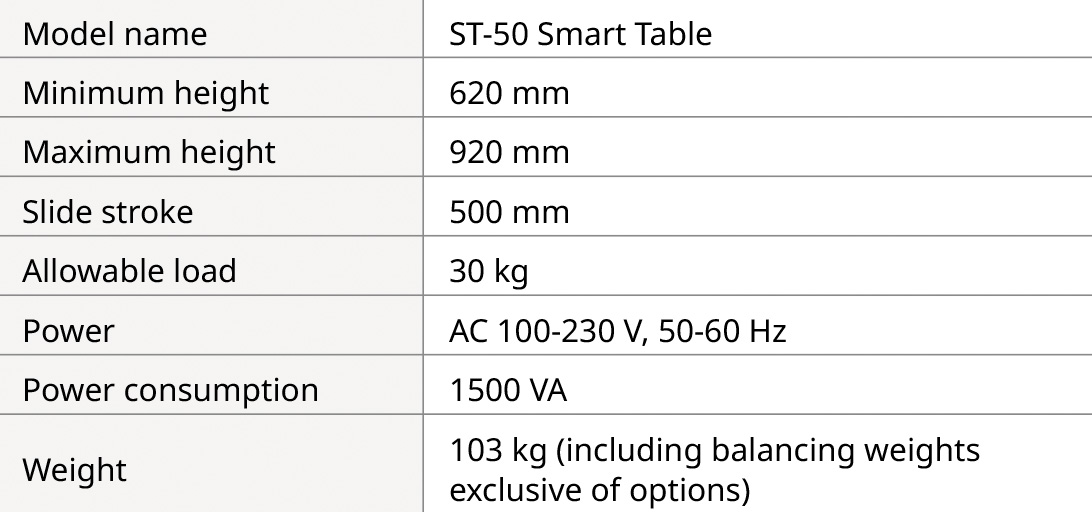

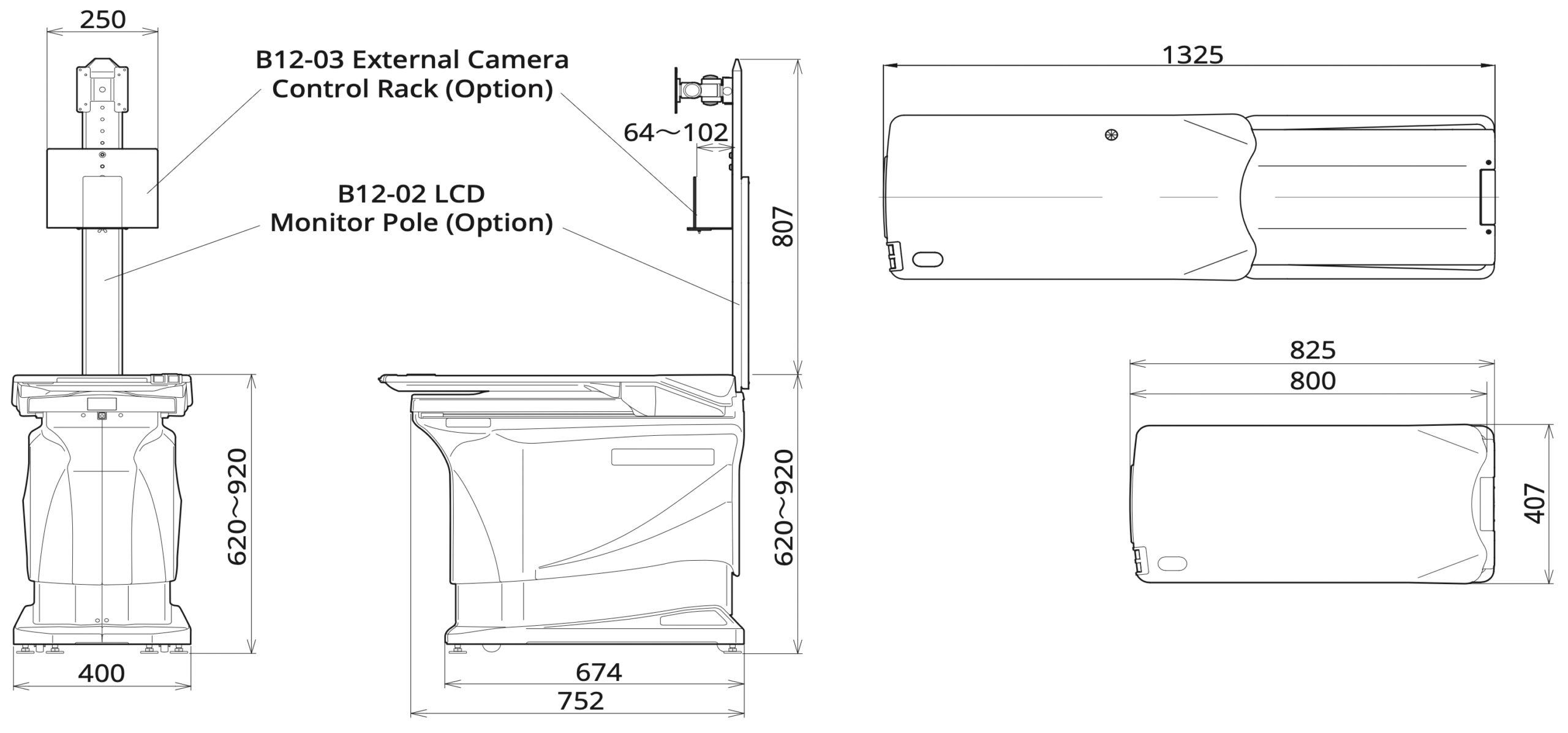

Elevation stroke

With a minimum height of 620 mm and a maximum height of 920 mm, the table accommodates examinations for patients with a wide range of body types.

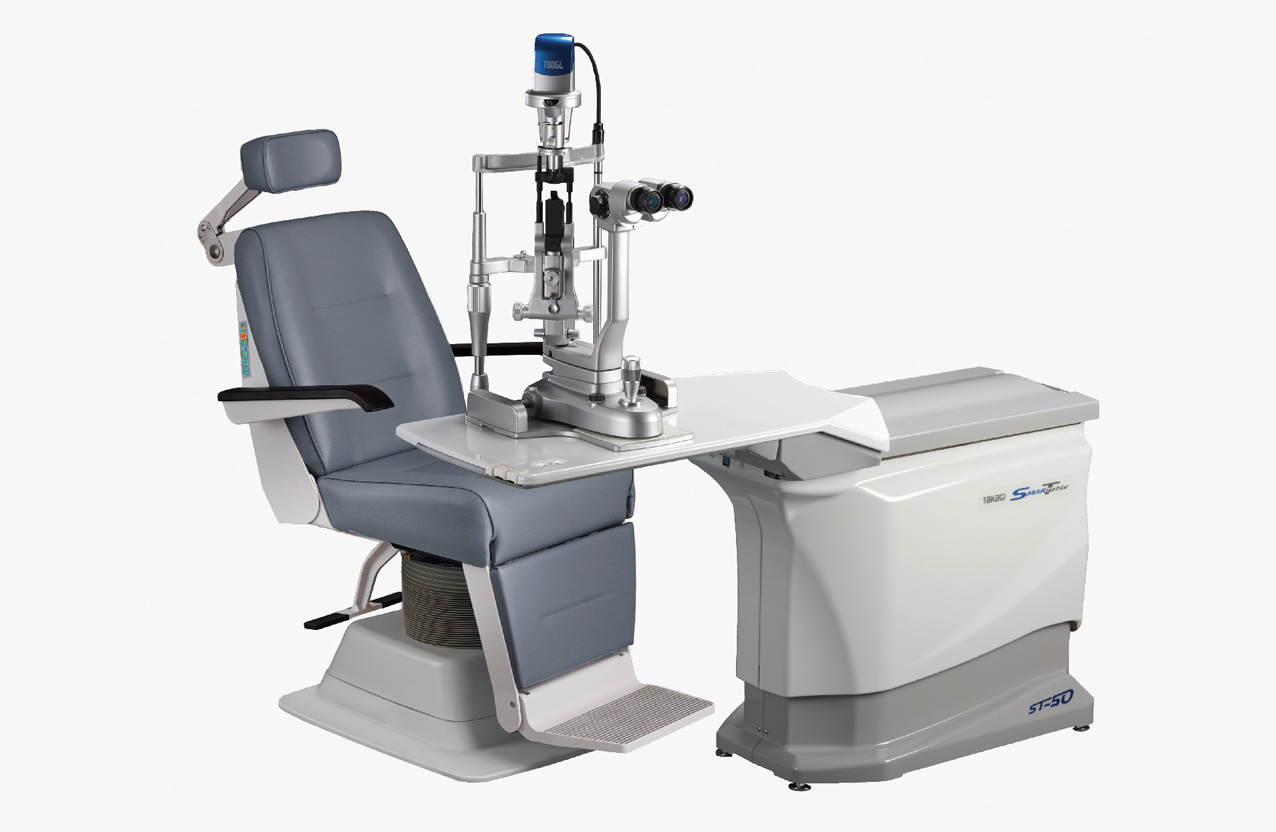

Slit lamp installation kits

Supports installation of slit lamps from various manufacturers, allowing flexible setup options.

*Please contact our sales department for full details.

Easy-to-organise design

The sliding tabletop and cable outlets support efficient arrangement of peripheral equipment and help maintain an organised clinical space.

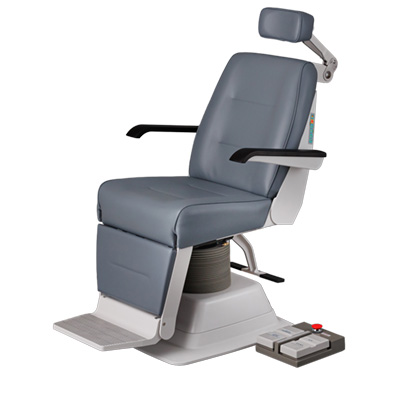

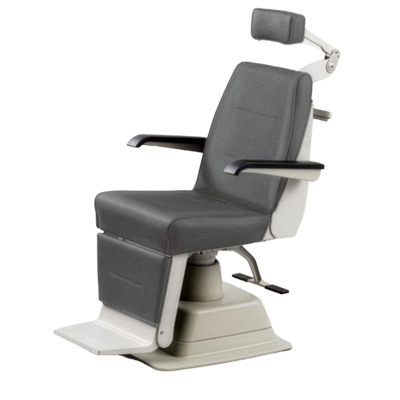

Combination with UN-21 Full Reclining Chair

In medical environments requiring large and/or reclining patient chairs, the UN-21 Full Reclining Chair can be connected to the table.

*Please see the Accessories in the brochure for UN-21 cable.

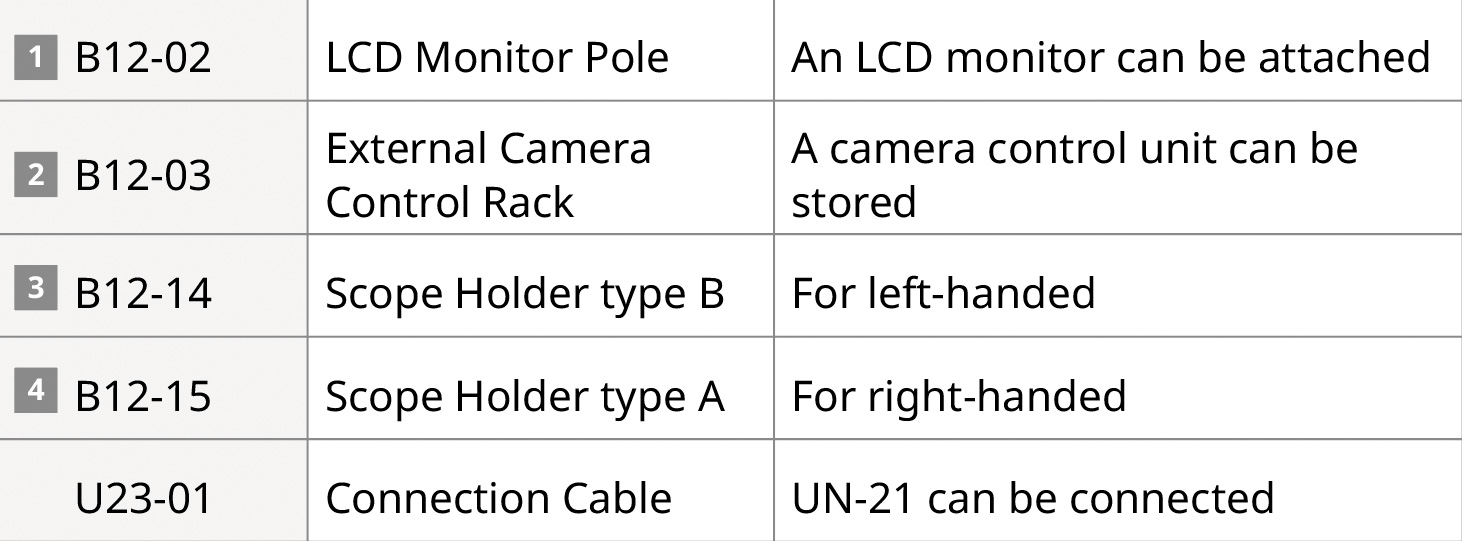

Accessories

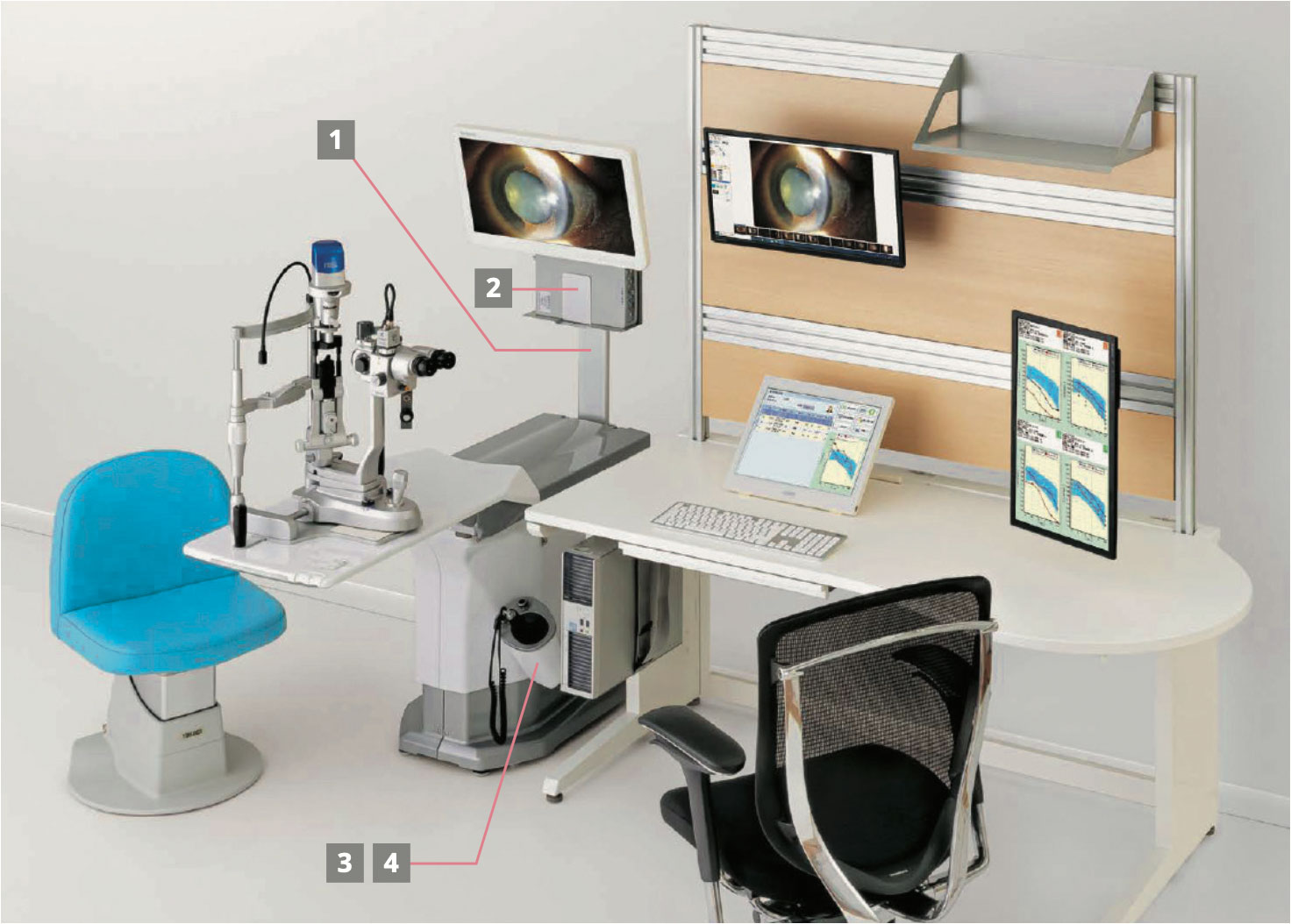

*Outer and inner covers are included with the scope holder. *The photo on the right is an example of a system desk.

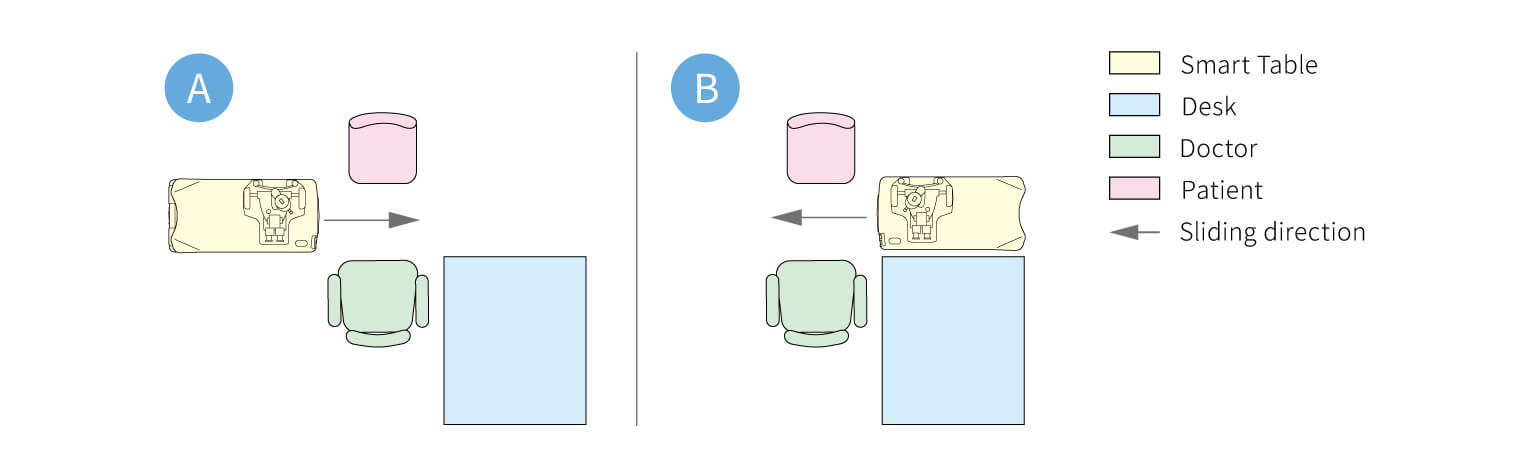

Layout

Available in two types: Type A and Type B. These types are factory options and cannot be changed after delivery. Please specify the appropriate type according to your examination room layout when ordering.

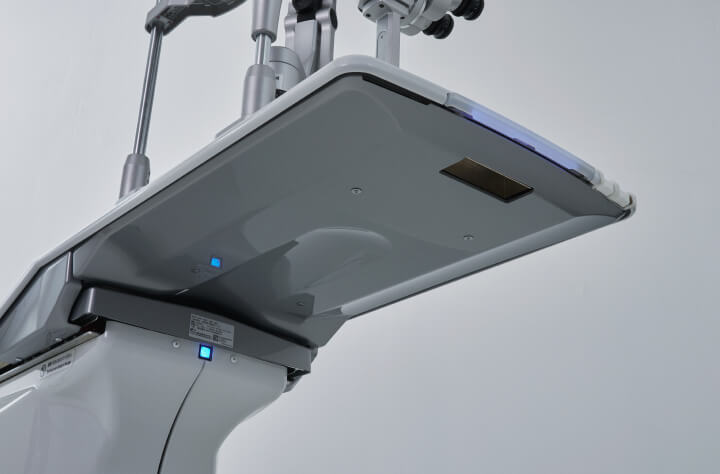

The underside of the table is covered to prevent exposure of mechanical components.

Also, the entire underside functions as an elevation safety switch, automatically stopping vertical movement if a person or object comes into contact with it.

During auto-slide operation, the slide movement stops if a person or object comes into contact with the safety switch located at the front edge of the table.

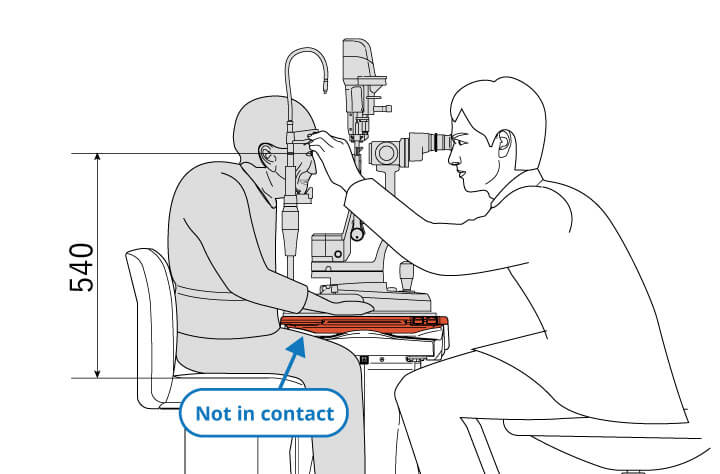

The slim table design provides ample legroom and accommodates patients of various body types.

Operation modes can be selected between Manual Slide and Auto Slide. This allows flexible operation according to the patient and examination environment.

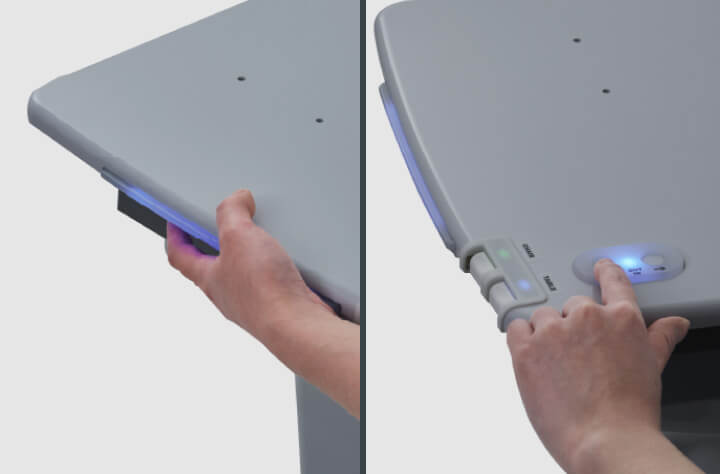

The table and patient chair can be raised or lowered using the switch located at the front edge of the table. Press the switch upward to raise and downward to lower the table and chair, enabling intuitive positioning adjustment.

With a 300 mm elevation stroke and a 500 mm slide stroke, the design also accommodates wheelchair users.

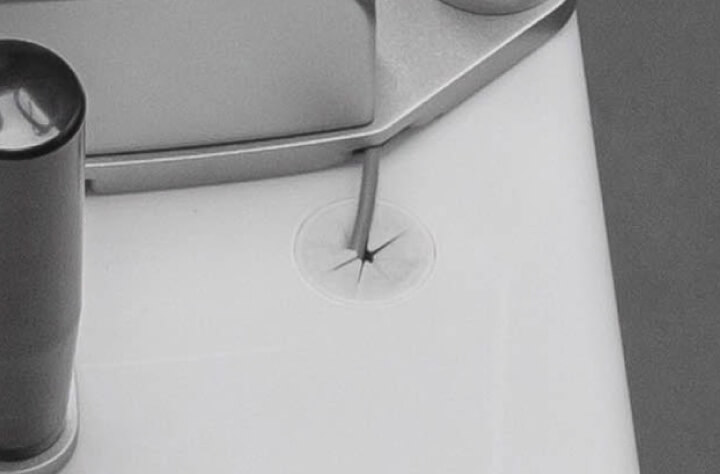

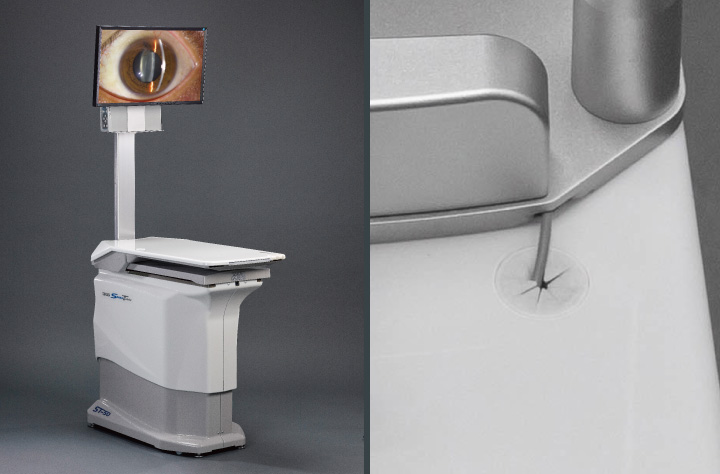

Power cables for the slit lamp, camera cables, and other wiring can be routed through the cable outlet located on the top of the table and stored inside the exterior cover.

*Depending on the specifications of third-party products, some cables may not fit within the storage space.
