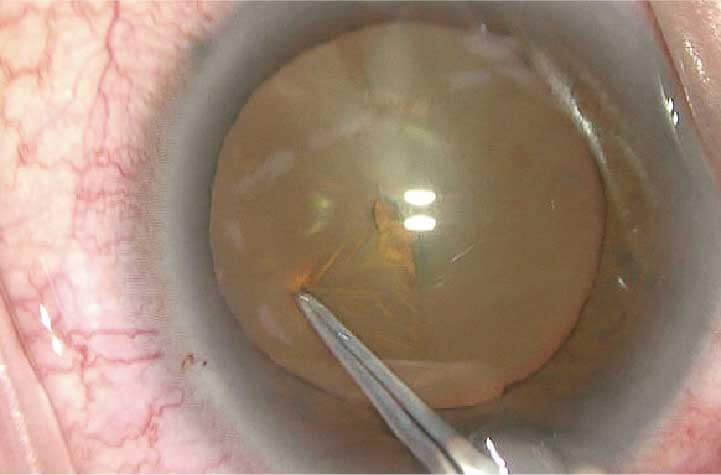

CCC (Continuous Curvilinear Capsulorhexis)

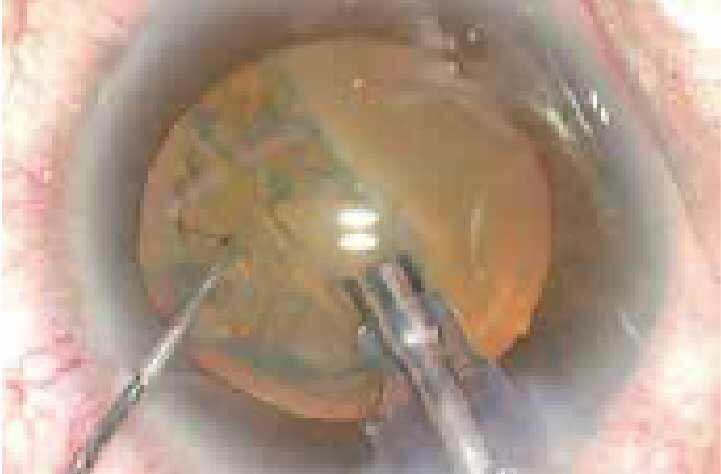

PEA (Phacoemulsification and aspiration)

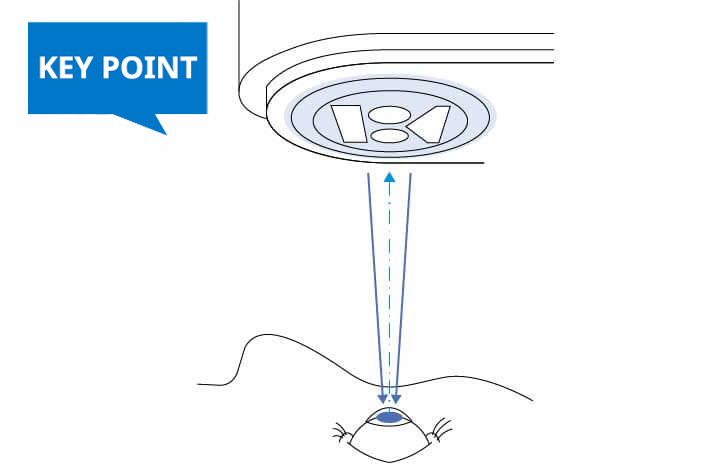

The illumination from two mirrors entering the pupil (simultaneously) provides ample red reflex illumination from the fundus and uniformly illuminates the lens.

*The image is for illustrative purposes only.

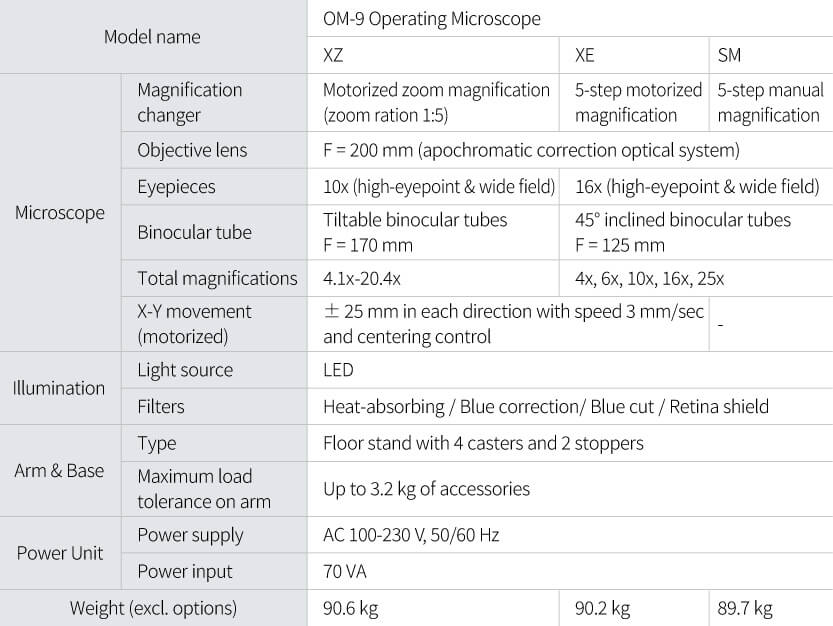

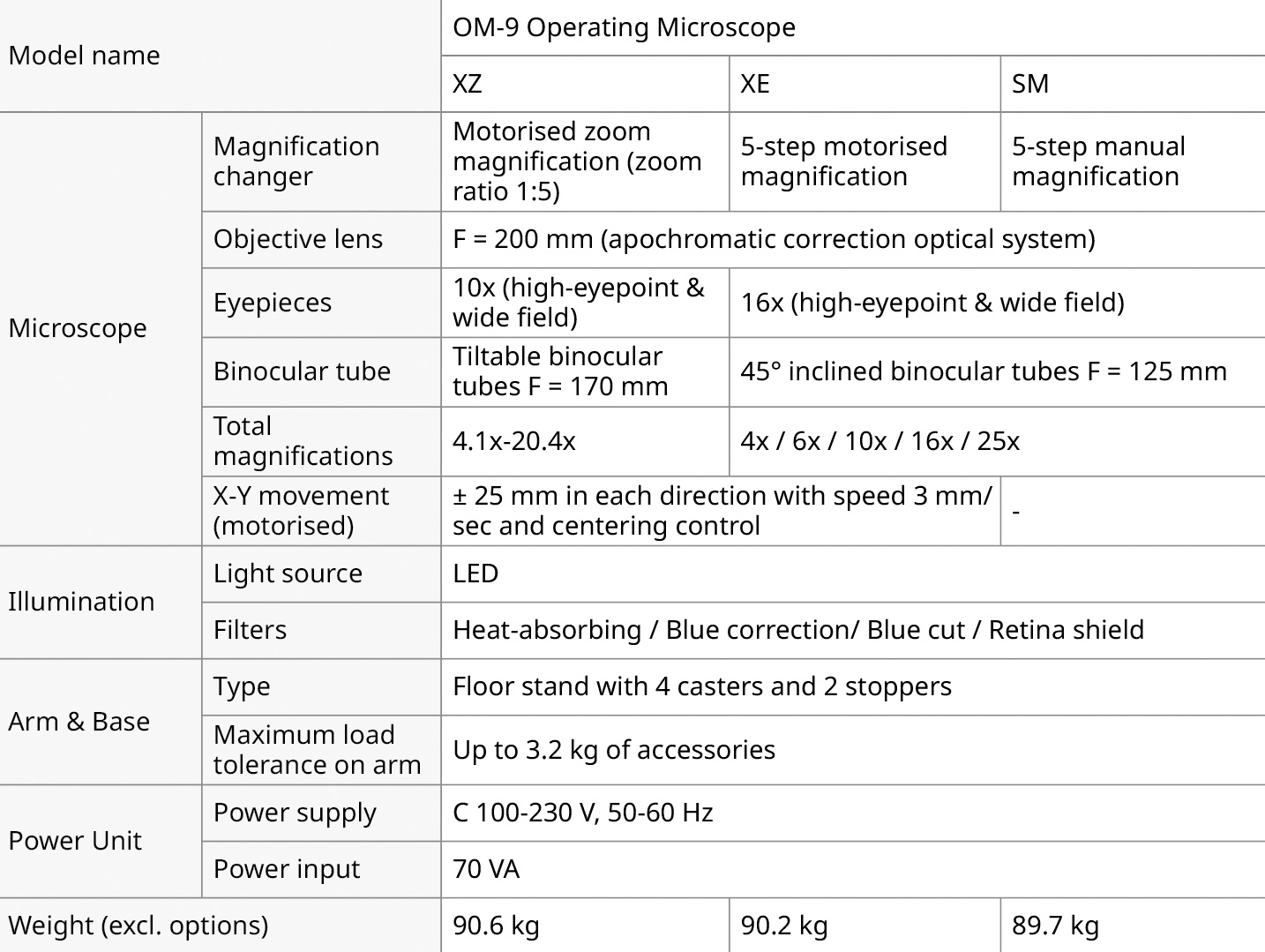

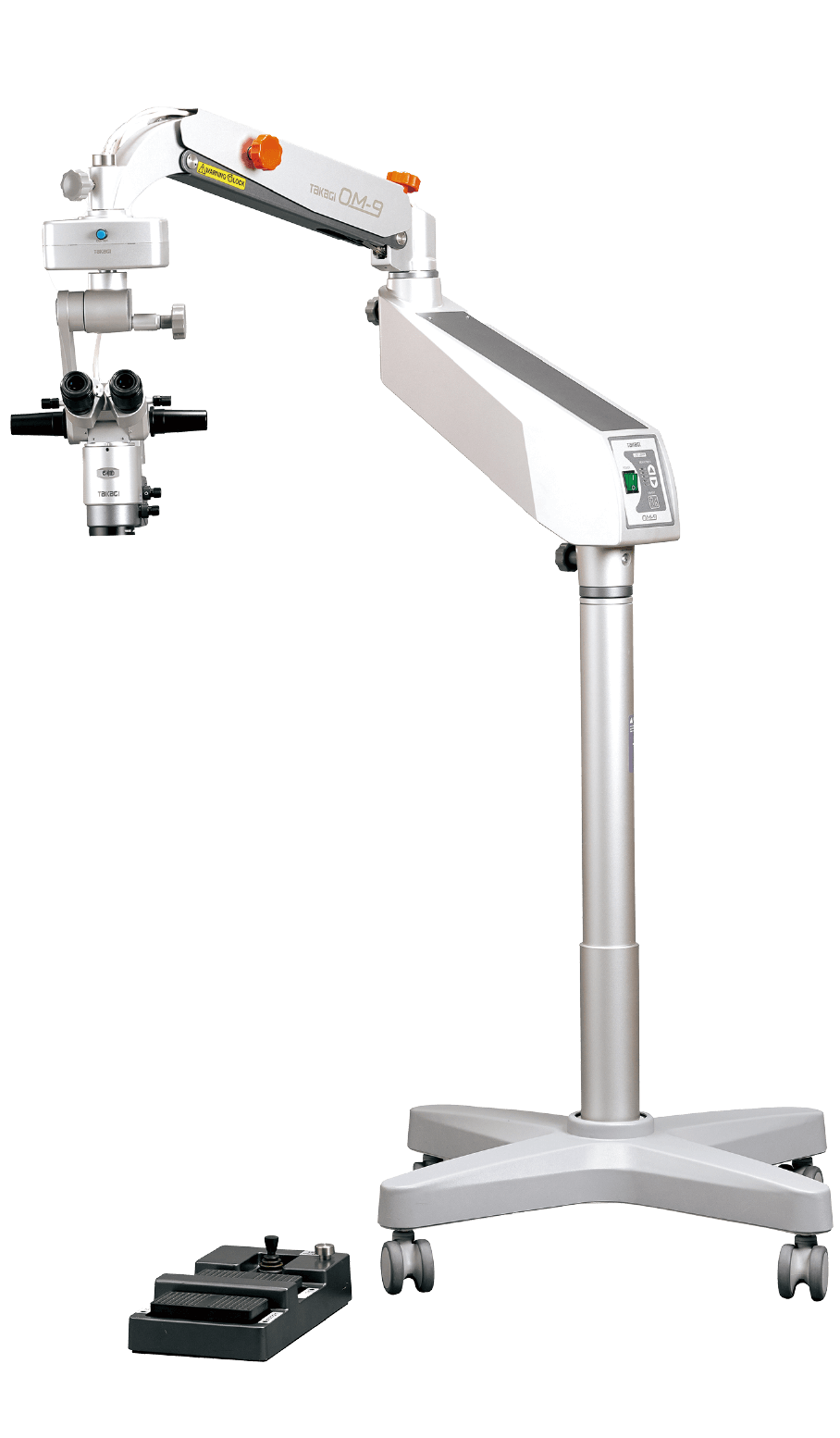

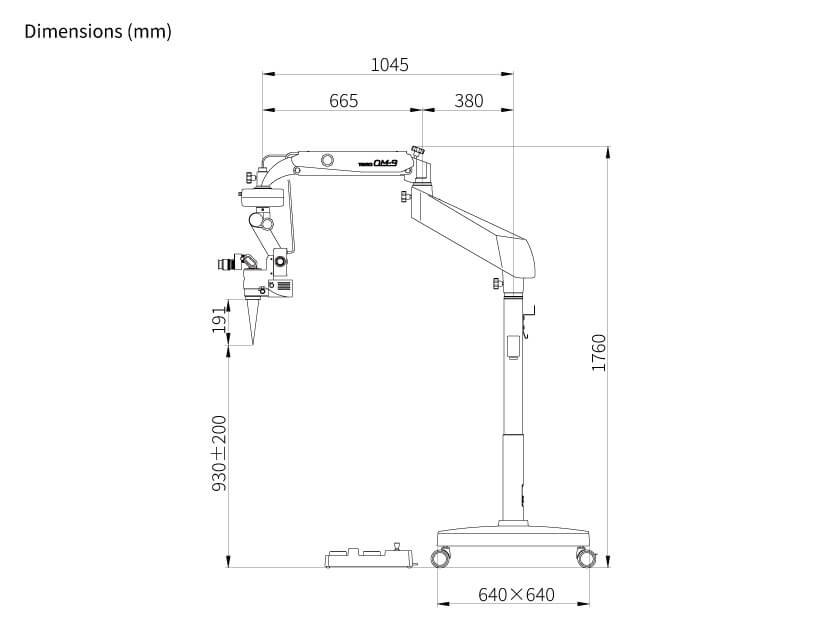

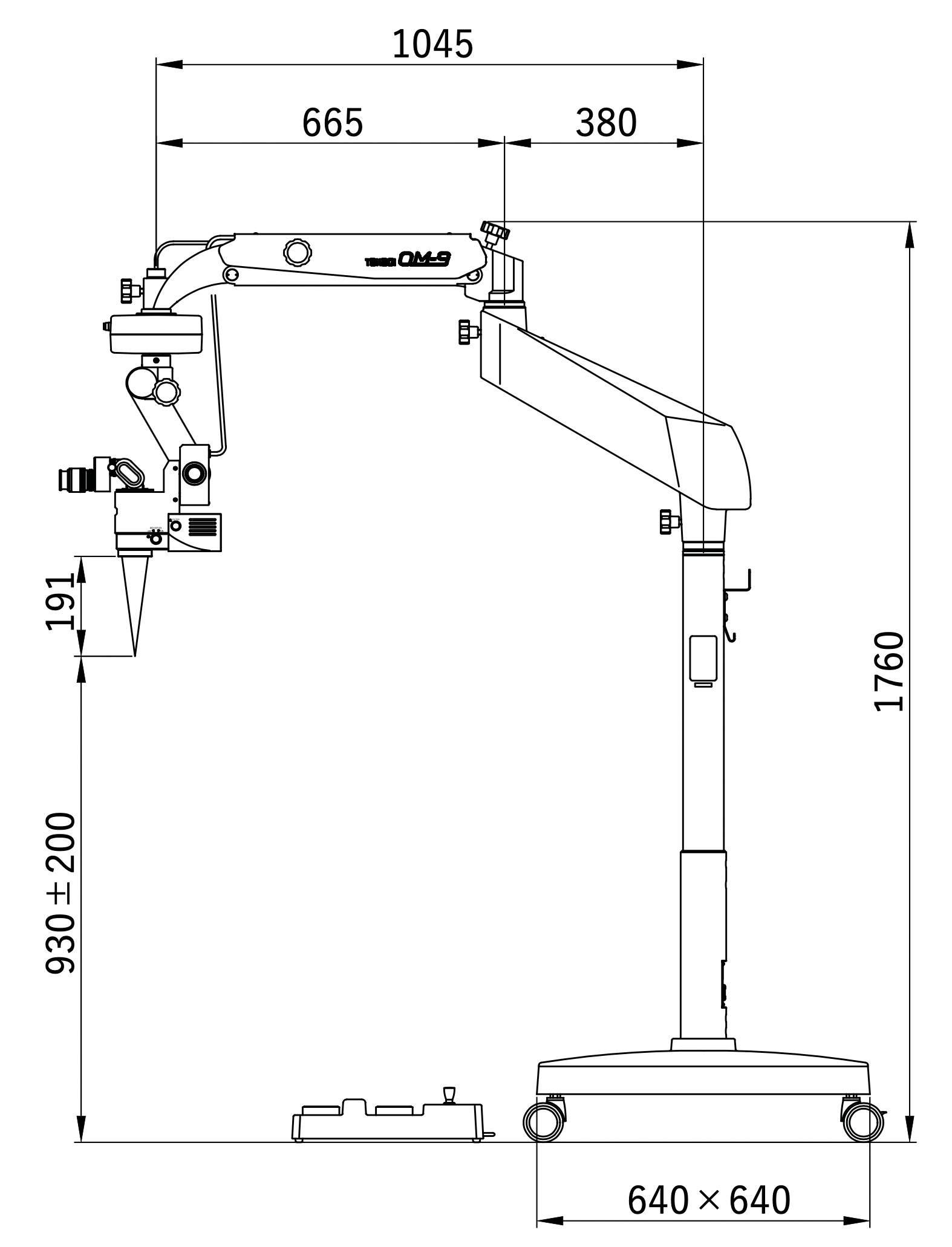

XZ configuration (Motorised Zoom microscope specification)

Coupling: X-Y coupling
Microscope: Motorised zoom magnification (zoom ration 1:5)
Binocular tube: Tiltable

XE configuration (Motorised 5-step magnification specification)

Coupling: X-Y coupling
Microscope: 5-step motorised magnification
Binocular tube: Fixed at 45° angle

SM configuration (Manual 5-step magnification specification)

Coupling: Straight coupling
Microscope: 5-step manual magnification
Binocular tube: Fixed at 45° angle

Magnification adjustment and layout both optimised for the surgeon

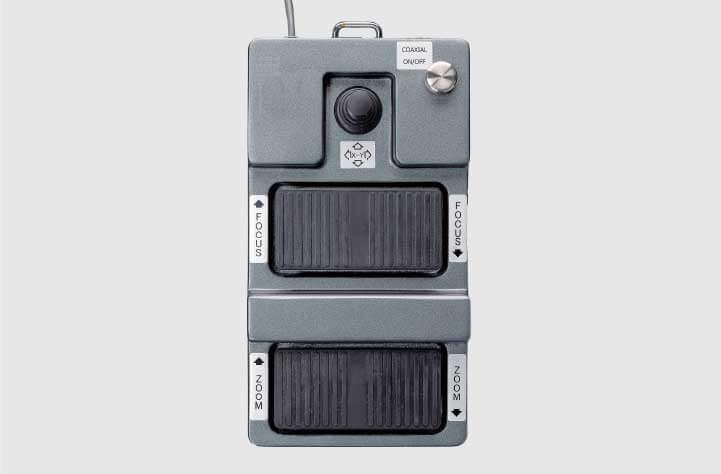

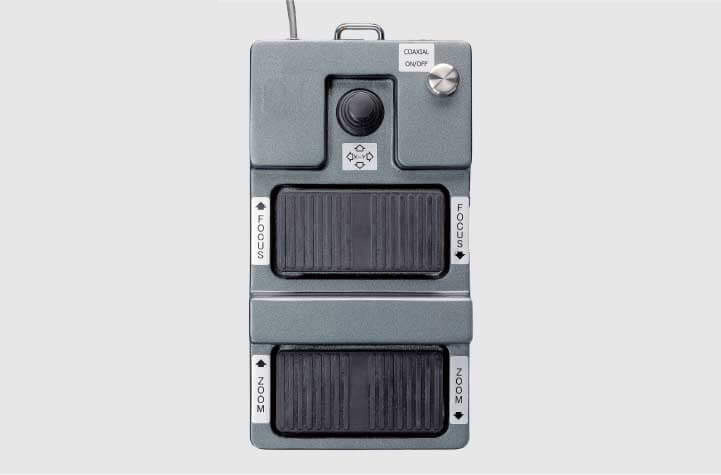

The XZ and XE specifications have a foot controller that allows smooth adjustment of magnification. Furthermore, the pedal position can be freely customised to create the optimal layout for operation by the surgeon.

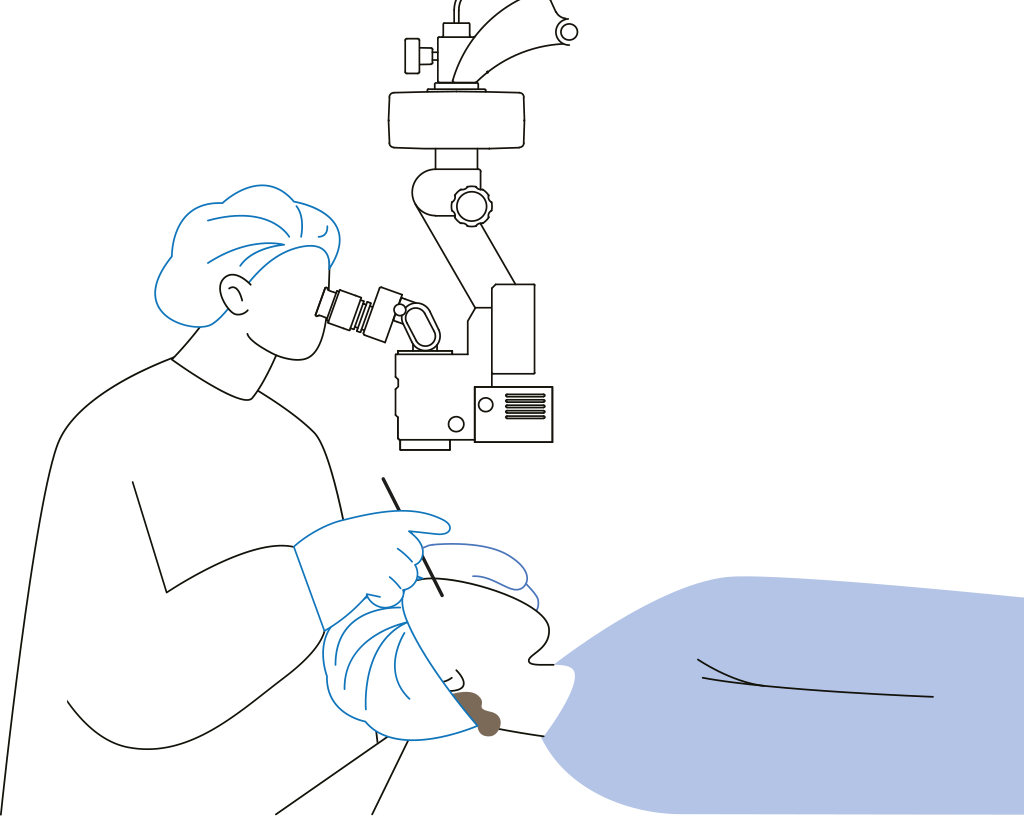

Ergonomic design

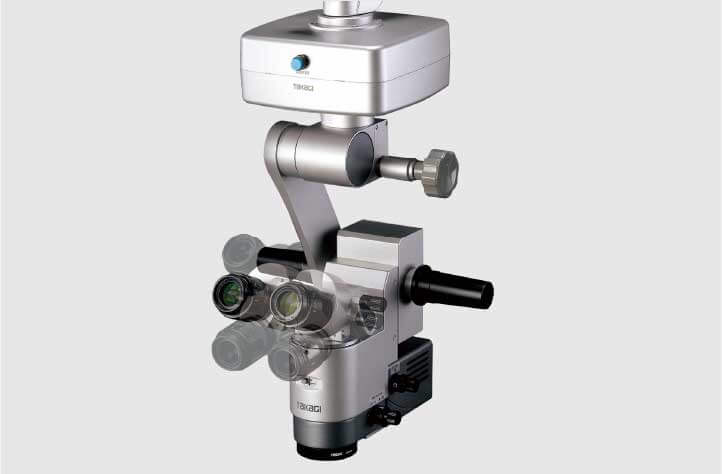

The XZ specification is equipped with binocular tubes which angle can be adjusted up to 90 degrees. This allows the surgeon to keep a comfortable posture and maintain concentration, even during long surgical operations.

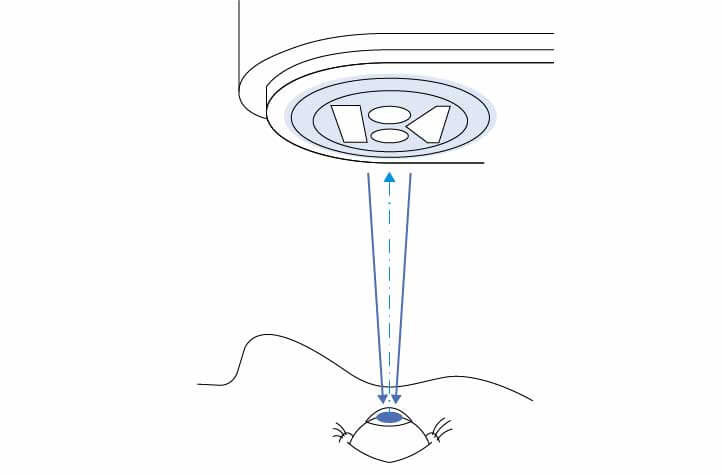

The system is equipped with a red reflex illumination mechanism using a high-intensity LED so that when red reflex illumination is turned ON, it switches to a system where light is emitted from two mirrors. This makes it easier to obtain reflected light from the fundus, enabling red reflex observation required for cataract surgery and similar procedures.

This design ensures a naturally bright and three-dimensional surgical field, making it easier to grasp the condition of the affected area.

LEDs feature high brightness and long lifespan for enabling stable illumination over a long period of time. The OM-9 incorporates a dedicated filter designed to ensure colour reproduction and visibility during observation while taking advantage of LED characteristics. Special attention has been paid to the blue wavelength to enhance colour contrast and improve visibility of the target tissues.

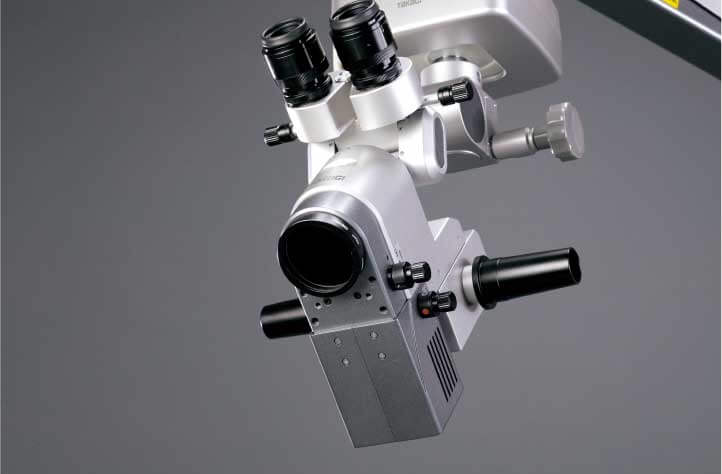

The F = 200 mm objective lens provides deep depth of focus, making it easy to keep the entire surgical field in focus during operations. This allows continued observation with minimal focus deviation, even when the target area moves slightly.

The OM-9 uses an apochromatic lens for correcting chromatic aberration across red, blue, and green wavelengths, reducing colour fringing and supporting observation with more natural colouration.

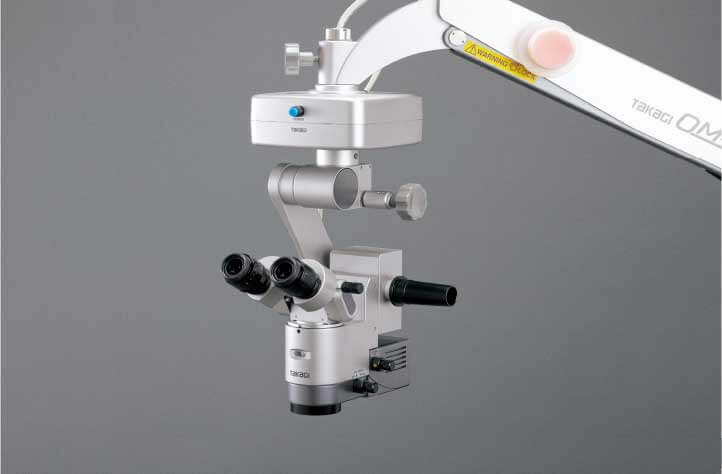

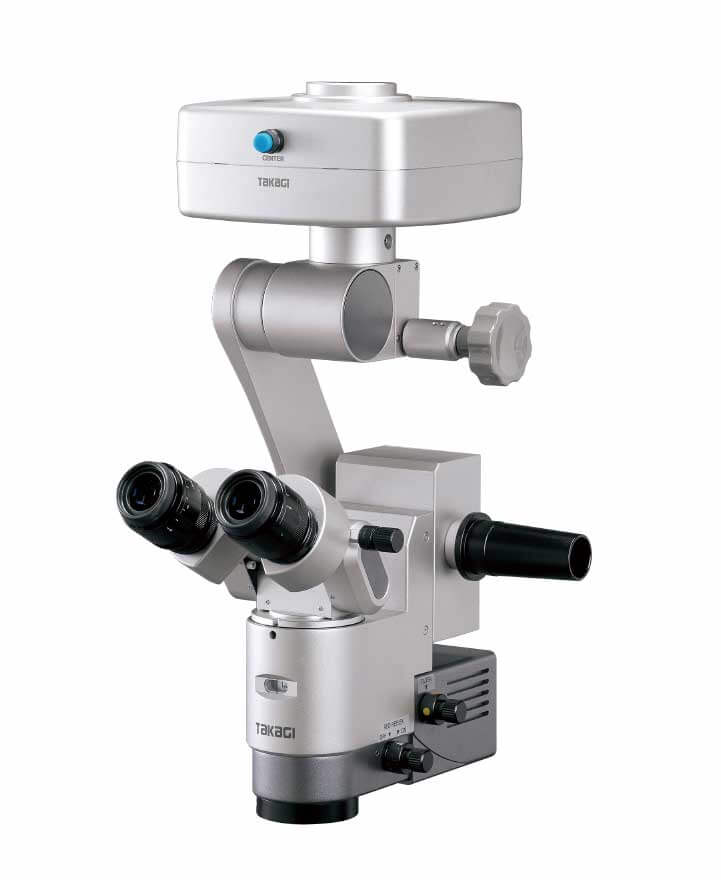

The XZ Configuration (motorised zoom microscope specification) features a tiltable binocular tube adjustable by more than 90° for enabling observation in a comfortable posture. Fine adjustment of X-Y movement is also possible, supporting surgical field alignment. Magnification can be continuously varied using the motorised zoom and is operable using the foot controller.

This enables smooth switching of the surgical field and adjustment of the magnification during surgery without interrupting the workflow, allowing full concentration. This configuration provides a balance of comfort and operability.

The XE Configuration (motorised 5-step magnification microscope specification) features a fixed binocular tube angled at 45° and allows fine adjustment of X-Y movement. The motorised 5-step magnification function enables magnification changes using the foot controller.

This allows the surgeon to smoothly change magnification, supporting a comfortable observation environment. This configuration provides a balance between cost and usability.

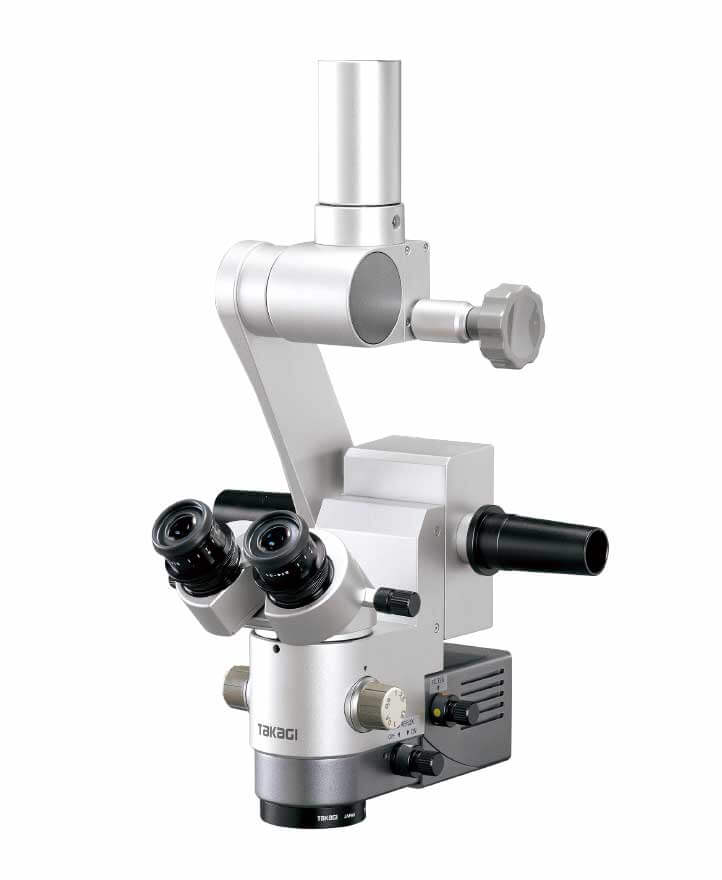

The SM Configuration (manual 5-step magnification microscope specification) provides the same optical performance as the XZ and XE Configurations and is suitable for use in outpatient procedures. Focusing on essential functions, magnification is adjusted manually. This configuration’s simple operability allows for appropriate setting of the required observation magnification, supporting ease of use in everyday procedural environments.

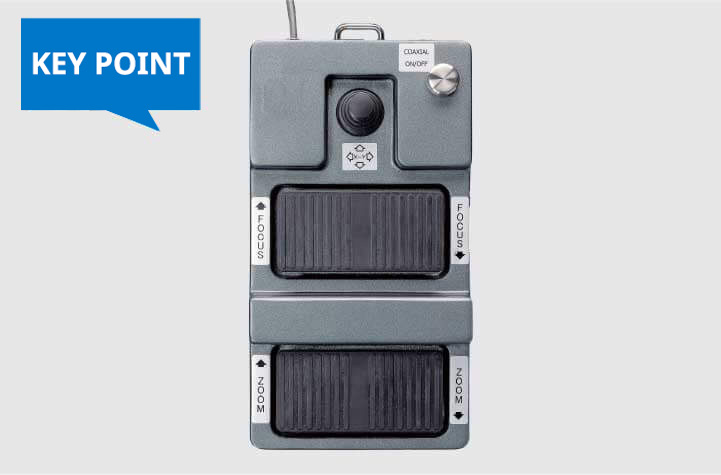

In all microscope configurations, the foot controller can be used for ON/OFF control of illumination and focus adjustment. In the XZ and XE Configurations, the foot controller also supports magnification switching and X-Y movement. Furthermore, the pedal layout for focus and magnification adjustment can be customised to match the surgeon’s preference for enhanced operability.

It also features waterproof and dustproof performance (IPX6), ensuring safe use even in environments where liquids may splash.

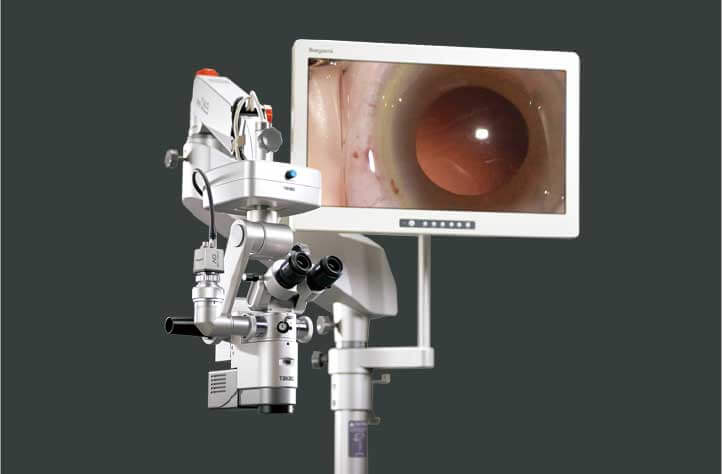

*Image with LCD monitor and the O06-22 Monitor Arm attached.

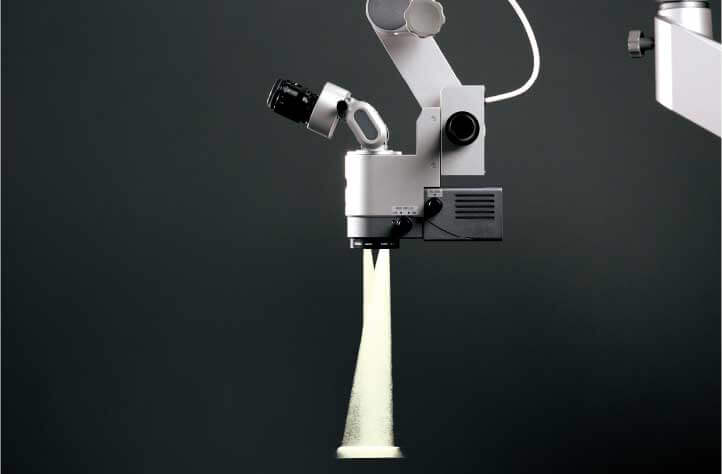

The O06-19SE and O06-20SE Assistant Microscopes share the same field of view with the surgeon, facilitating smooth surgical collaboration.

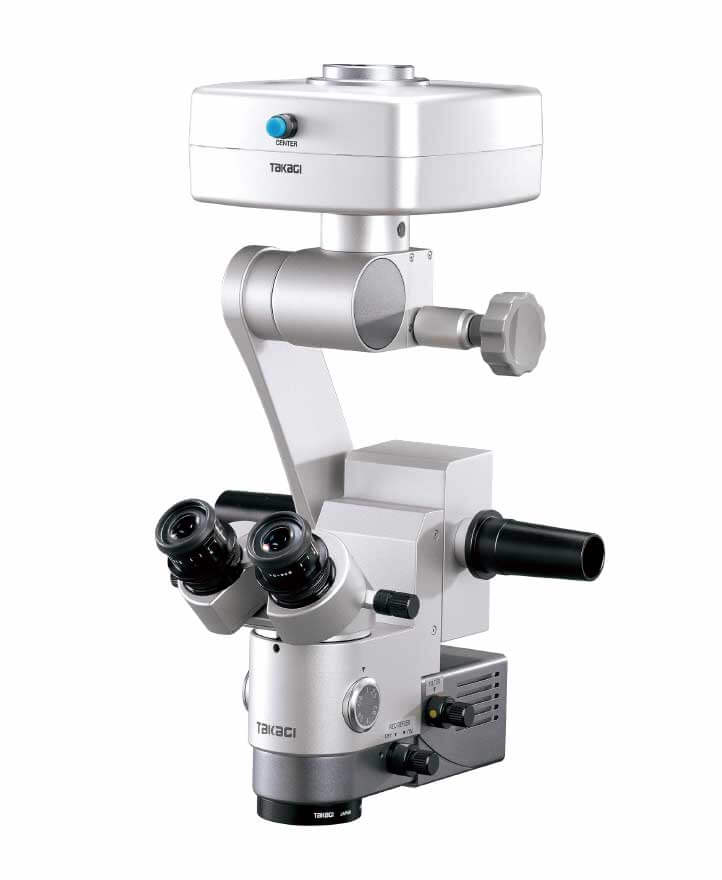

The O11-03 Beam Splitters and the O08-11 and O08-22 Camera Adapters support visualisation and recording of information.

The O06-22 Monitor Arm allows integration of the LCD monitor with the surgical microscope, and the O06-23 safety-designed Camera Control Rack supports a comfortable surgical environment.

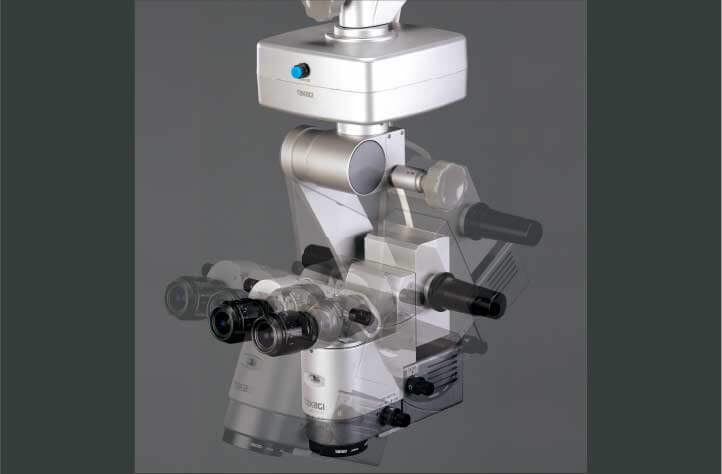

A microscope head tilt mechanism suitable for glaucoma surgery is included, offering a wide range of motion of ±30°. The handle-based design allows quick and intuitive operation, enabling adjustment to the desired viewing angle.

This helps reduce the burden on the surgeon and contributes to a stable surgical environment.
