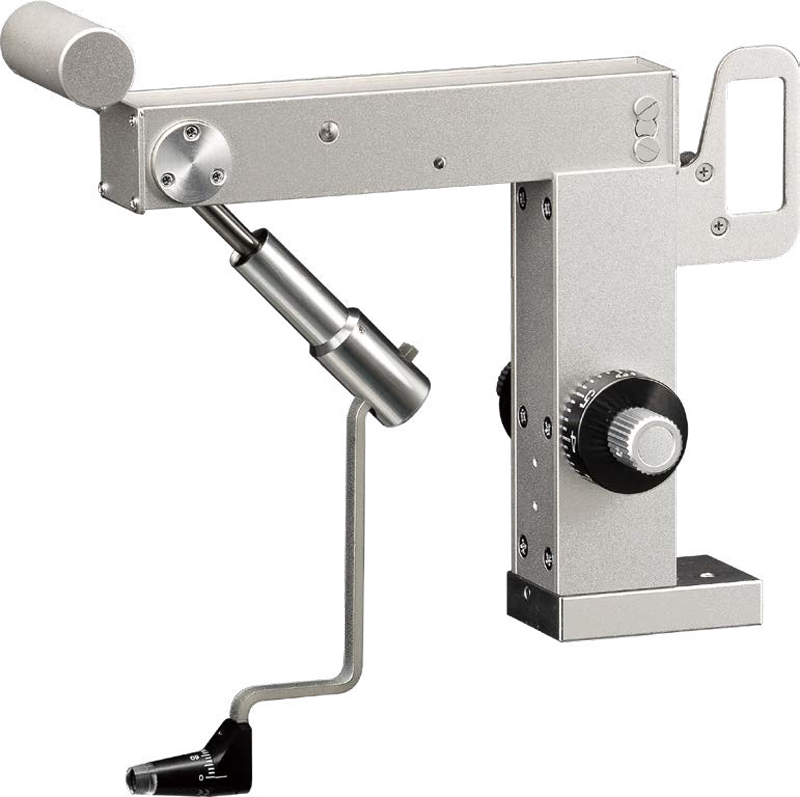

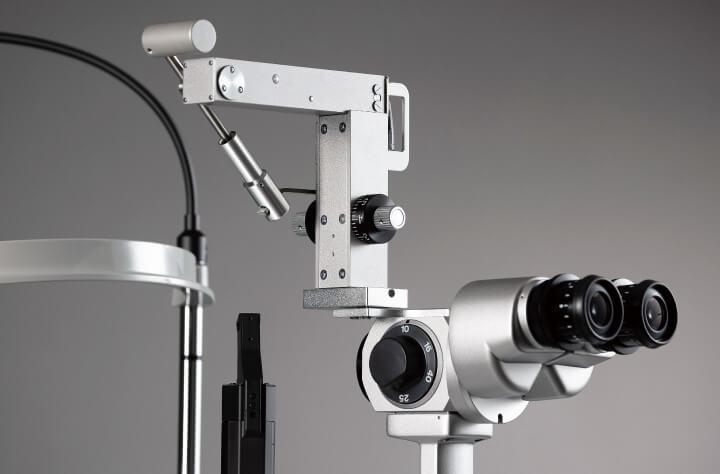

AT-2 is finished in the same colour as the slit lamp to give a sense of uniformity when installed. Optional tonometer base TB2 is required for installation.

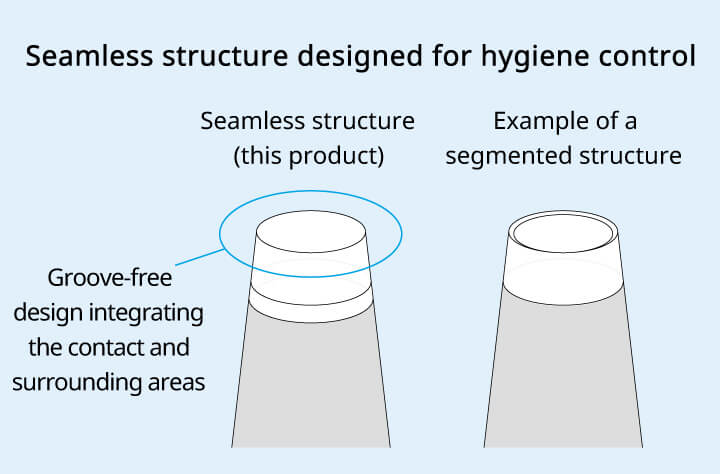

Smart integrated structure reduces risk of infection

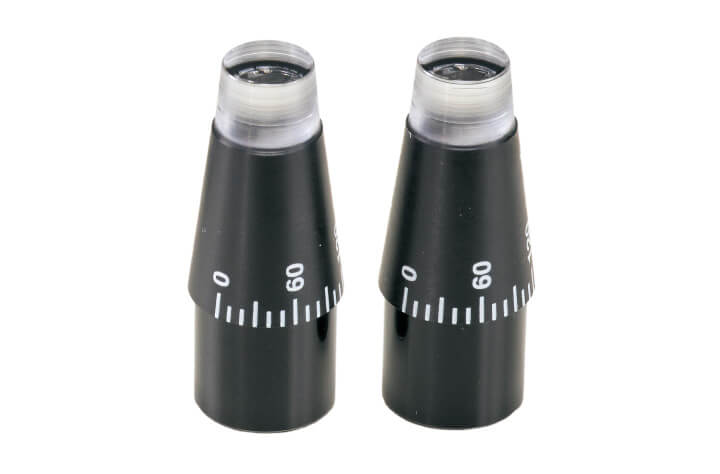

Measuring Prism S12-18 features an integrated structure that reduces infection risk. Its environmentally conscious design is ideal for re-use, and enables highly accurate and safe intraocular pressure measurement. Methacrylic resin, one of the hardest and most highly transparent optical-use plastic materials, is used to realise brightness and clarity of observation and to maximise product life.

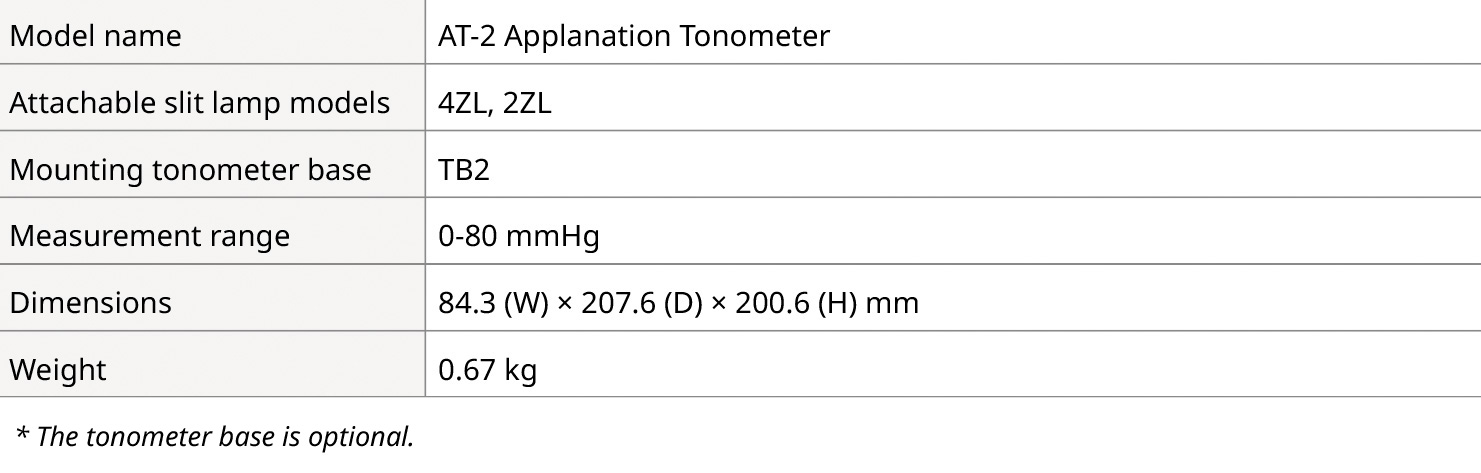

|Attachable slit lamp models||2ZL, 4ZL|

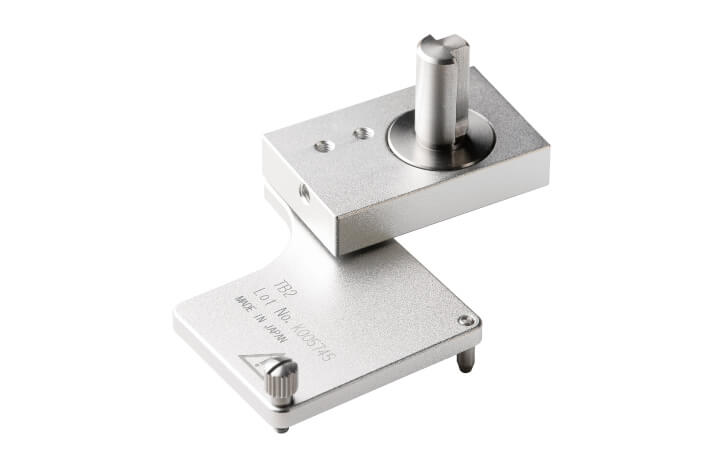

|Mounting tonometer base||TB2|
|Measurement range||0~80 mmHg|
|Minimum scale value||2 mmHg|
|Measurement method||Goldmann method (Goldmann Applanation Tonometry)|
|Measurement deviation||Nominal value ±1.5% or ±0.49 mN, whichever greater|
|Reverse span (Hysteresis)||≦0.29 mN|
|Diameter of applanation field||3.06 mm|
|Depression area||7.354 mm2|
|Equation for conversion from mmHg to kPa||1 mmHg = 101325 / 760 Pa 133.3 Pa 100 Pa = 0.1 kPa|
|Dimensions||207.6 mm (W) x 84.3 mm (D) x 200.6 mm(H)|
