Slit Lamp Microscopes - MS1 Mobile Slit Lamp Microscope

Wherever you are together with smartphone

With a smartphone, not only ophthalmologists but also non-ophthalmologists can acquire slit lamp images anywhere eye medical care is difficult to reach, for example, distant, sparsely populated areas, home health care, EMS, disaster areas, developing countries, etc..
Non-ophthalmologists on site can send the slit lamp images taken by MS1 to an ophthalmologist for thorough diagnosis.

A local medical practice in Mongolia where MS1 is in use (Source: MITAS Medical Inc.)

Medical examinations and diagnoses using MS1 are useful not only for initial treatment such as prescribing eye drops available in the local area, but also for referral to ophthalmology hospitals in urban areas for highly specialized treatment.

Examples of diseases and signs for which MS1 was useful for diagnosis:

  • Cataract
  • Acute glaucoma attack
  • Pterygium
  • Dry Eye
  • Corneal damage caused by foreign objects, and infection associated with it

    Features

    Equipped with Slit Lamp Basic Functions

    High-brightness LED provides up to 40,000lux.
    0.2mm width slit illumination from 30° left, ø14mm length illumination, a blue filter as standard, and wide area illumination by diffuser.

    *Slit illumination width and illumination angle are not variable.

    Excellent Usability

    Forehead and cheek rests are designed to fix the device in position for stable photographing.

    The rollers at the tip of the forehead and cheek rests enable scanning/taking a video of eyeball from end to end.

    *In case that a smartphone has the videography function.

    Various Smartphones Attachable

    Most smartphones with the small protrusion camera lens fitted on the top left side of the phone can be used with MS1.

    Attachable Smartphones

    • Camera at upper left
    • Small camera bump

    Non-attachable Smartphones
    • Camera at upper centre or upper right
    • Large camera bump
    • Foldable type

    * Depending on the smartphone model, it may not be attachable.

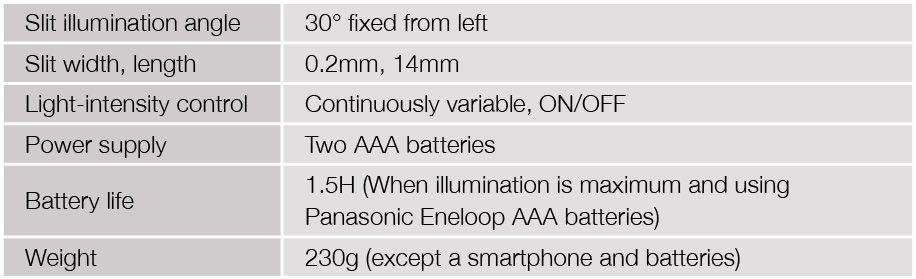

    Major Specifications

    Slit illumination angle 30° fixed from left
    Slit width, length 0.2mm, 14mm
    Light-intensity control Continuously variable, ON/OFF
    Power supply Two AAA batteries
    Battery life 1.5H (When illumination is maximum and using Panasonic Eneloop AAA batteries)
    Weight 230g (except a smartphone and batteries)

    Dimensions
