Of a simple design, very easy to position and the degree of illumination is controlled by a single switch.

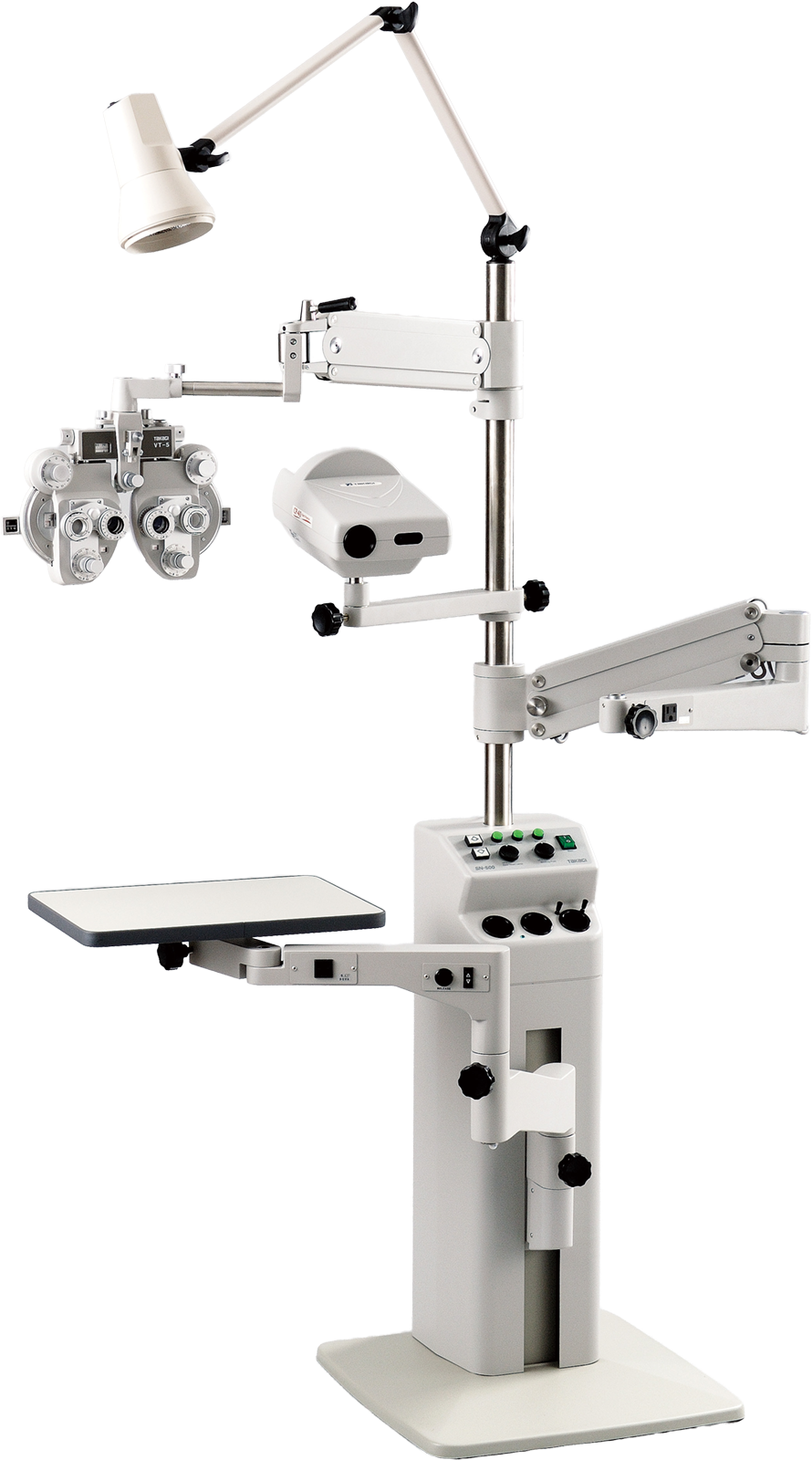

View Tester Arm
Provision is made for plenty of vertical adjustment along with one touch positioning. Outstanding counter-balancing makes this fitting pleasantly simple to handle.
The range of vertical movement is 200mm, which is ideal for use with such equipment as ophthalmometers, etc.
An important feature of this unit is the ease with which heavy ophthalmological instruments such as slitlamp microscopes can be easily raised and lowered with the weight balancing system.
Takagi has developed an innovative mechanism using an electromagnetic clutch and timing belts so that automatic sliding or manual sliding can be used at will.
Both automatic and manual sliding mechanisms have achieved ease of use as well as excellent durability and quietness.

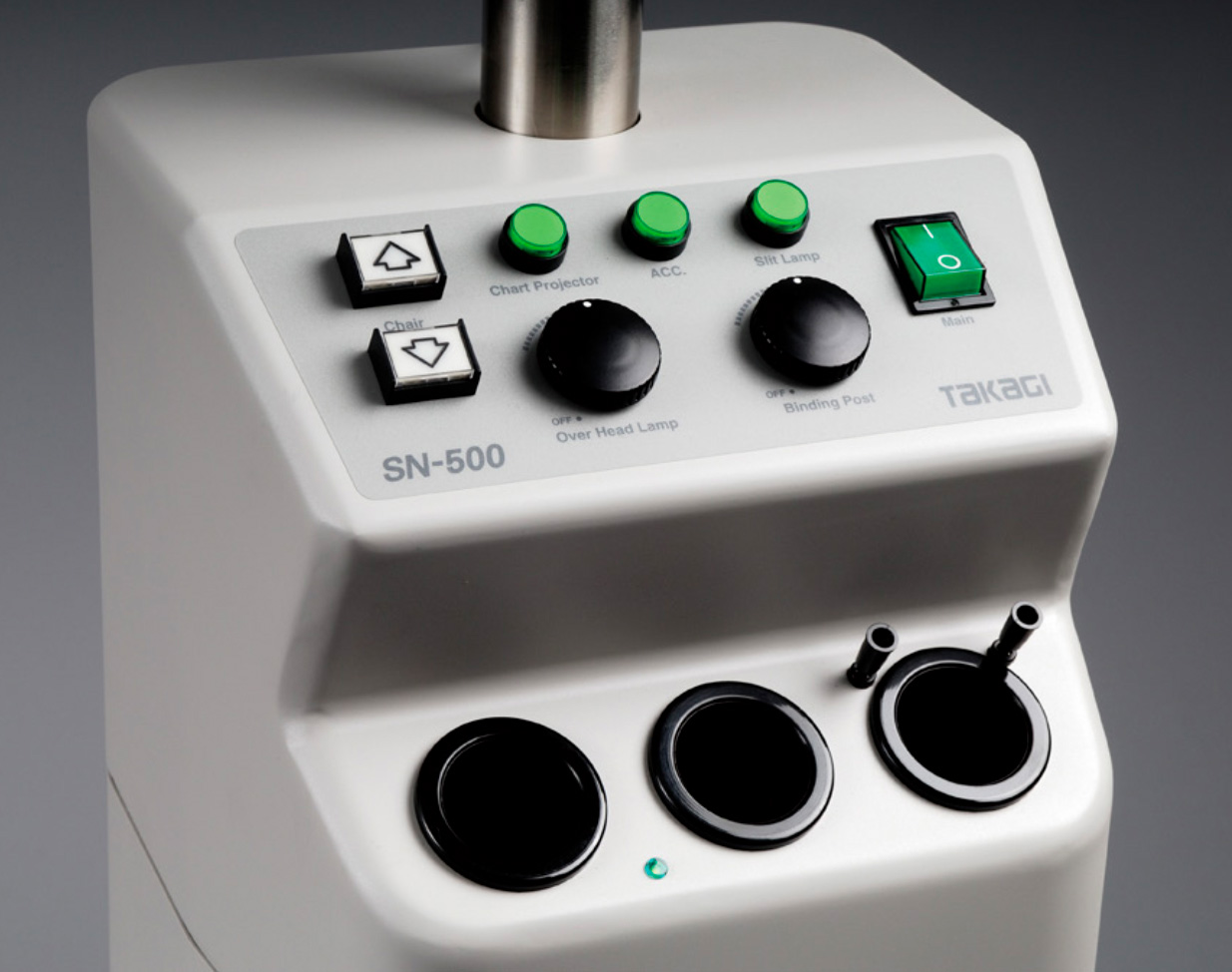

For controlling the power output and voltage of various ophthalmological instruments, Takagi replaced the connector inside the control box. It is now possible to convert to either the low voltage type, such as slitlamp microscope (4 – 7.5V) and ophthalmometer (6V) or the high voltage type of which the primary power is direct-employed. Also three small hand-held instruments can be used.
|Space required||600mm x 600mm|
5x step Galilean type, converging optics, upper LED illumination, and built-in background illumination
2x step Greenough type with converging optics and upper LED illumination
5x step Galilean type, converging optics, lower LED illumination, and built in background illumination
3x step Galilean type with converging optics and lower LED illumination
5x step Galilean type with converging optics and lower Halogen illumination
