Diagnostic & Specialist - ARKM-200 Auto-Refkeratometer

New Generation of Multi-Functional Instrument

A highly accurate machine which facilitates short examination times combined with ease of use making the ARKM-200 an essential for the professional. The advanced touch-screen display allows you to perform both Refraction and keratometry with one simple movement. Capture one eye on the display and the ARKM-200 will display both eyes automatically. The ARKM-200 allows efficient examination of patients with the new features.

  • Various settings like changing modes can be done on the touch panel display.
  • The wide viewed fixation target assures natural fixation to avoid accommodation of a patient’s eye.
  • The quick thermal printer has shortened the total measurement time.





Features

Automatic Measurement

  1. Use power assist joystick for rough alignment.
  2. Touch the centre of the pupil on the display with your fingertip and ARKM-200 will automatically align and begin measurements.
  3. Press the R/L Icon on the display and the instrument will automatically move to and measure the other eye.
  4. Printing is automatic.

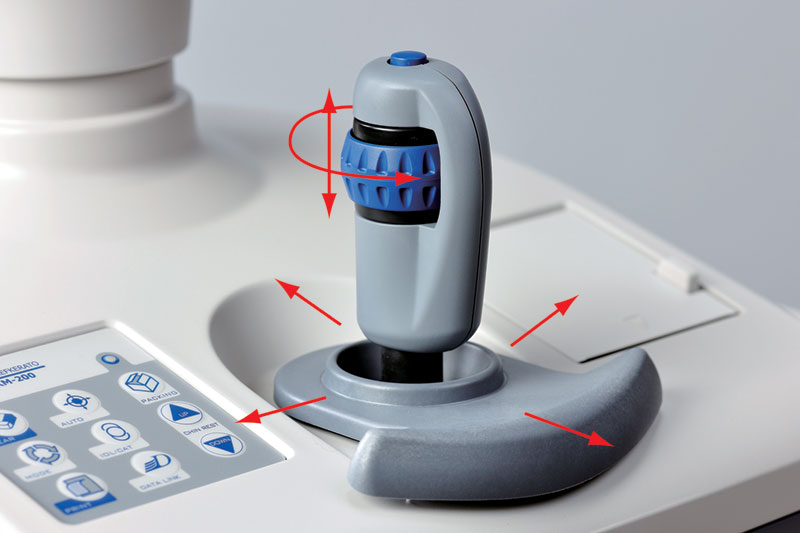

Power Joystick

  • More the joystick ring up/down and the instrument head moves up/down quickly.
  • Move the joystick hand rest to the right/left or backward/forward and the instrument head moves to the right/left or backward/forward quickly.
  • Rotate the joystick ring and the instrument head moves up/down slowly.
  • Tilt the joystick and the instrument head moves in each direction slowly.

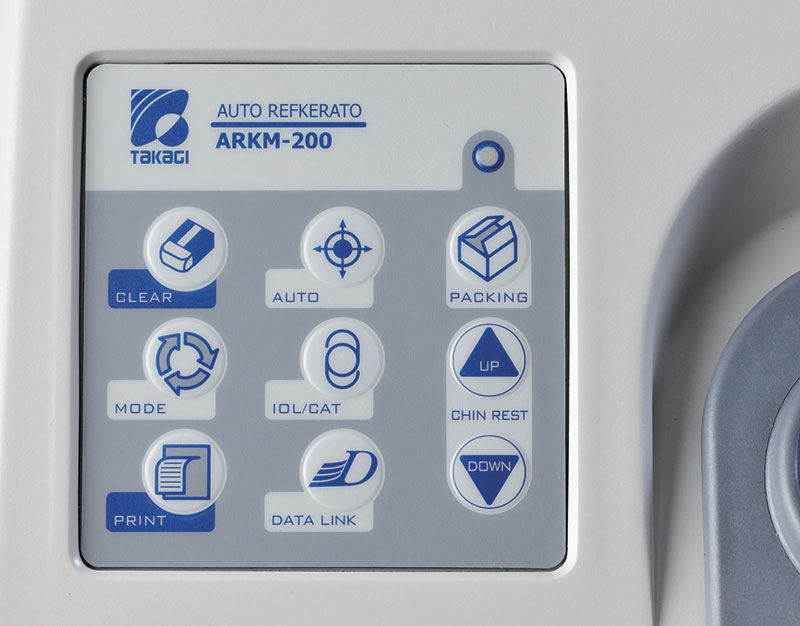

Power Chinrest

The chin rest can be moved by pushing the buttons on the front panel. No need to reach out to the chin rest for manual adjustment.

Refractometory

Normal Mode:
Fogging is applied automatically for each measurement for more accurate results.

Quick Mode:
Fogging is applied as needed for consecutive measurements.

IOL/CAT Mode:
The mode is used to measure cataract or pseudophakic eyes.

Keratometry

  • Short consecutive measurements and time provide reliable data.
  • Measurements at Ø6.0mm (R=8.0mm) as well as at Ø3.0mm give you enough information for contact lens fitting.
  • Base curves of contact lenses are stored, categorized and suggested manufactures are automatically printed.

Diameter Measurement of Cornea and Pupil

Measurement can be done easily by moving the two cursors on the display to the boundary of Cornea or Pupil.
This is useful for deciding the diameter of a contact lens and for other contact lens fitting practices.

Major Specifications

Measurement Ranges
Refractomotory
Sphere -25.00 to +22.00D ( VD=12.00mm)
Cylinder -10.00 to +10.00D ( VD=12.00mm)
Axis 0 to 180 degrees
Minimum Pupil Dia. Ø2.2mm
Measurement Time 0.2 sec
Keratometory
Range 5.00mm to 11.00mm
Corneal Refraction 30.68D to 67.50D ( n=1.3375)
Corneal Astigmatism 0 to 10D ( n=1.3375)
Axis 0 to 180 degrees
Measured Area Ø3.00mm / Ø6.00mm
(at 8.0mm of Corneal Radius)
Measurement Time 0.1 sec
PD measurement 50mm to 86mm
Diameter Measurement of Cornea and Pupil 1.0mm to 14mm
Chinrest Power Chinrest
Printer High Speed Thermal Line Printer
Output port RS-232C
Power Requirements AC-100 to 240V 50/60Hz 130VA
Size 466mmH x 300mmW x 493mmD
Weight 19kg
