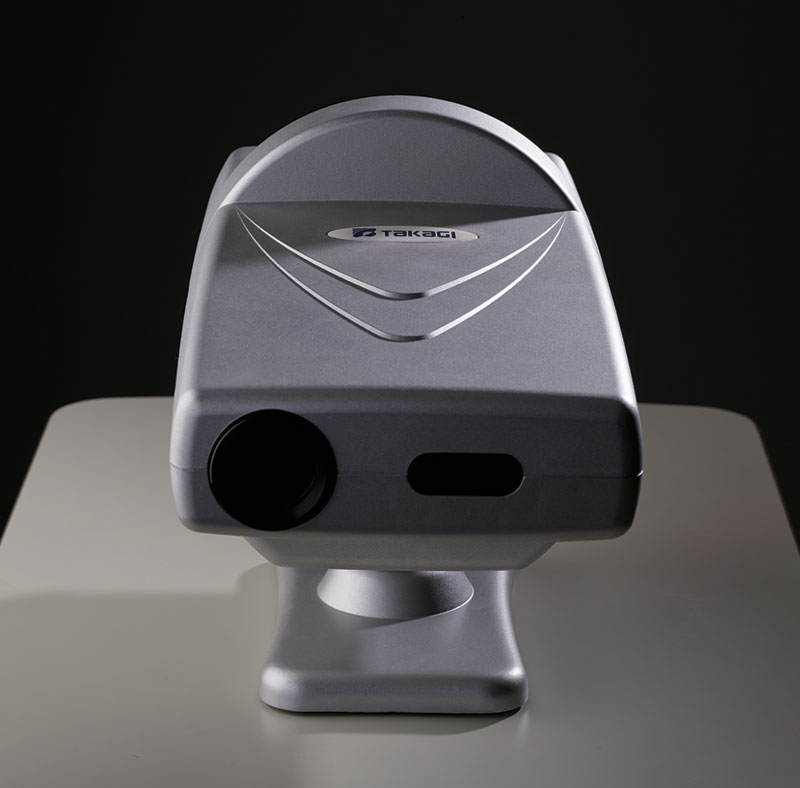

Diagnostic & Specialist - CP-40 LED Chart Projector

A Long-life LED Chart Projector

The light source changed from a conventional electric bulb type to an LED type which decreases CO2 emissions and also reduces electrical power consumption.

The LED replacement is virtually never needed.

  • Now with Log MAR charts, a wider range of test charts are available.
  • Vertical, horizontal, and single-character masks are available.
    Or, it can be fully open.
  • Visual acuity values are displayed in the test frame.
  • Charts can be changed either with the chart buttons or the arrow buttons on the controller.
  • Chart units are sealed and dust-tight, and can be replaced with other units.
  • With the friction method, the angle of the main unit can be adjusted vertically and horizontally (tilting up and down, and swinging left
    and right).
  • The controller offers ergonomically aligned buttons.

Major Specifications

Projecting distance 2.9 – 6.1m
Projection size 240(W) x 216(H) mm Ø240mm
(when using at a distance of 5m)
Mask Red / Green filter: 1
Horizontal slits: 3
Vertical slits: 5
Spots: 15
Rotating speed of
chart disk
0.1 sec / frame, within 0.7 sec. Maximum
Rotating speed of
mask disk
0.1 sec / frame
Program provided 2 kinds with 31 steps each
Main bulb used LED
Power Saving Automatically power off 10 minutes after use
Control Infrared wireless remote control
Power source AC100V-AC240V 50/60Hz
Mounts available Table type, Wall type
Tilting function Tilts up and down / left and right
Weight 4.1kg

Dimensions

Charts
