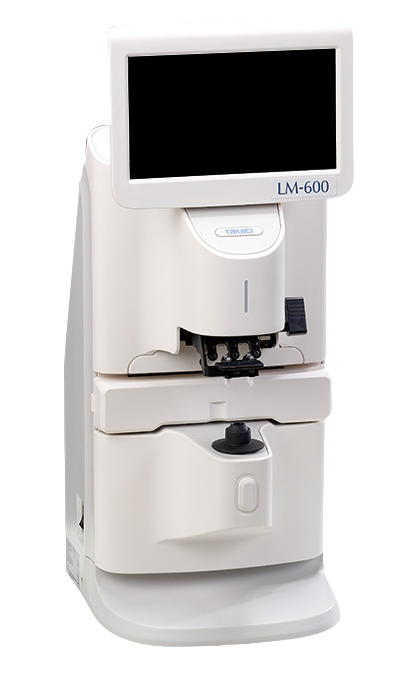

Diagnostic & Specialist - LM-600 Auto Lensmeter

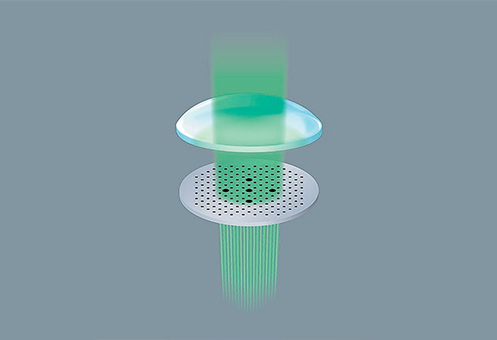

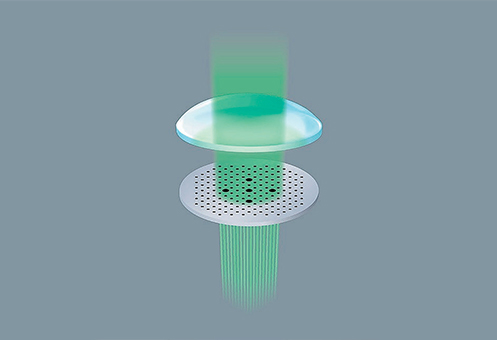

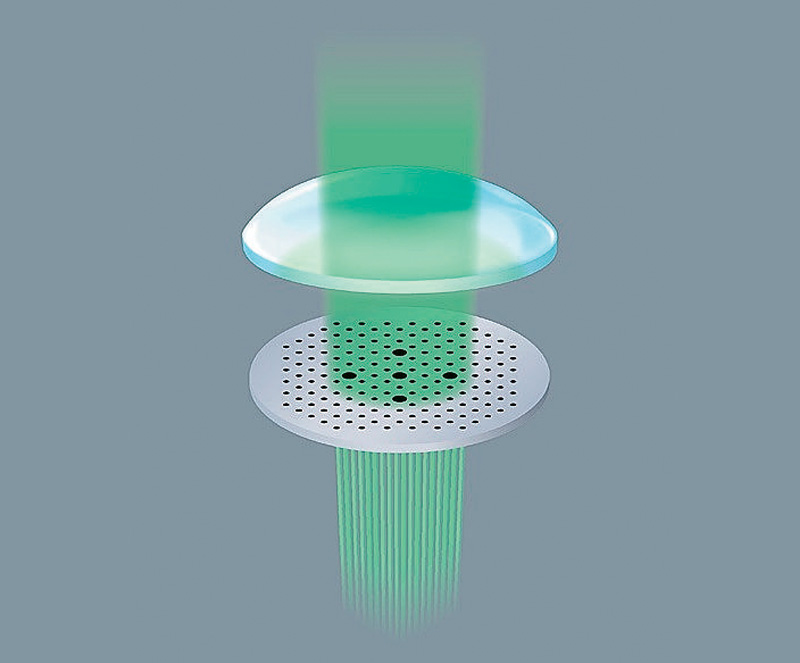

Wavefront technology with Hartmann sensor (117 points)

Using 117 point Hartmann sensor wavefront technology in the LM-600, measurement accuracy of vertically narrow progressive lenses has markedly improved.

Simultaneous measurement of UV/Blue light and power

By emitting measurement light, UV light (375nm) and Blue light (465 nm) simultaneously, it is possible to check UV/Blue light transmittance as well as conduct power measurements.

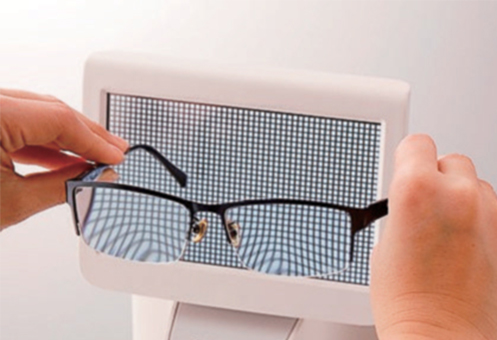

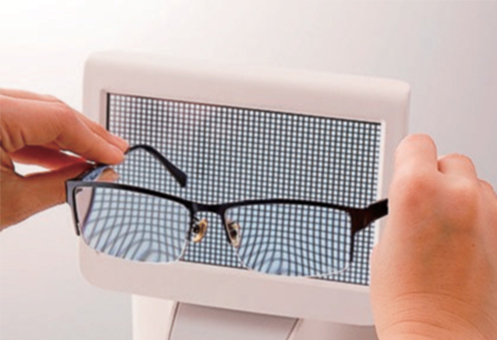

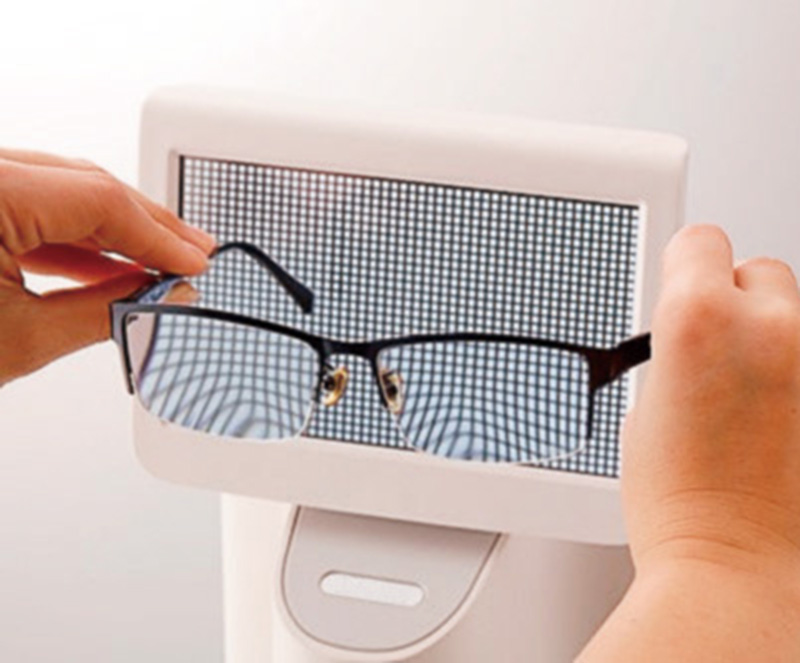

Lens mark recognition support

Displaying the grid patterns on the screen will help recognition of lens marks. Grid patterns are selectable.

LAN and RS-232C connection

Output the measurement data from each port of LAN and RS-232C.

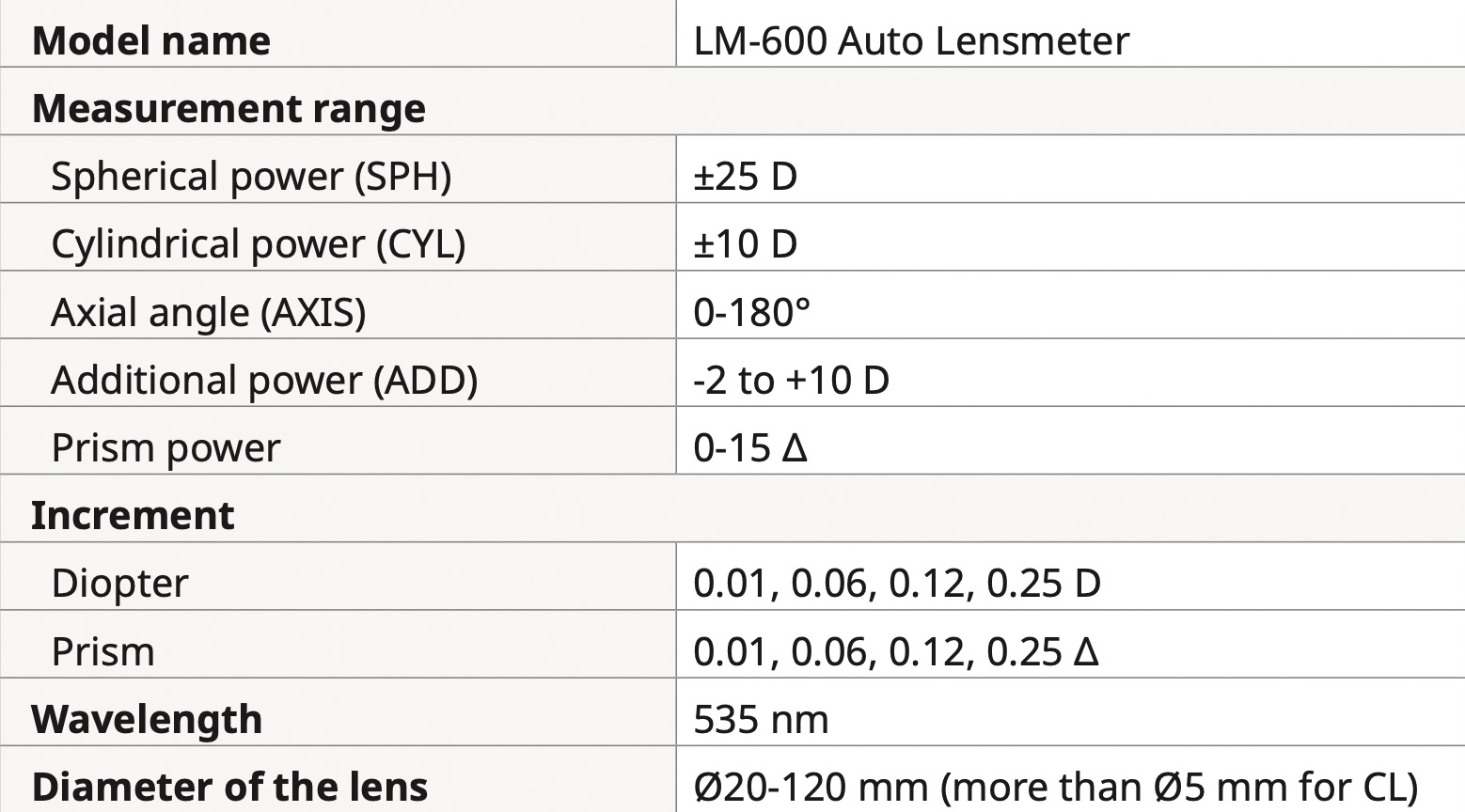

Major Specifications

Measurement Range
Spherical Power(SPH) ± 25D
Cylindrical Power(CYL) ± 10D
Axial angle(AXIS) 0 to 180°
Additional Power(ADD) -2 to +10D
Prism Power 0 to 15△
Increment
Diopter 0.01/0.06/0.12/0.25D
Prism 0.01/0.06/0.12/0.25 △
Wavelength 535nm
Diameter of the lens Ø20 to 120mm (more than 5mm for CL)

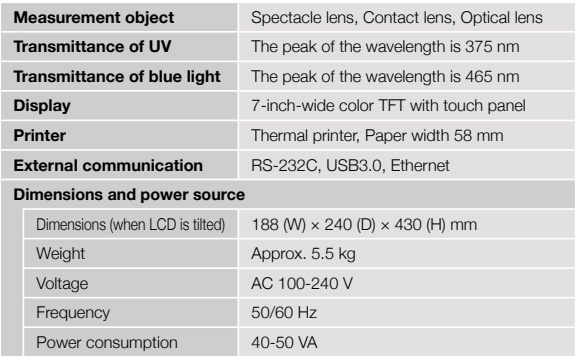

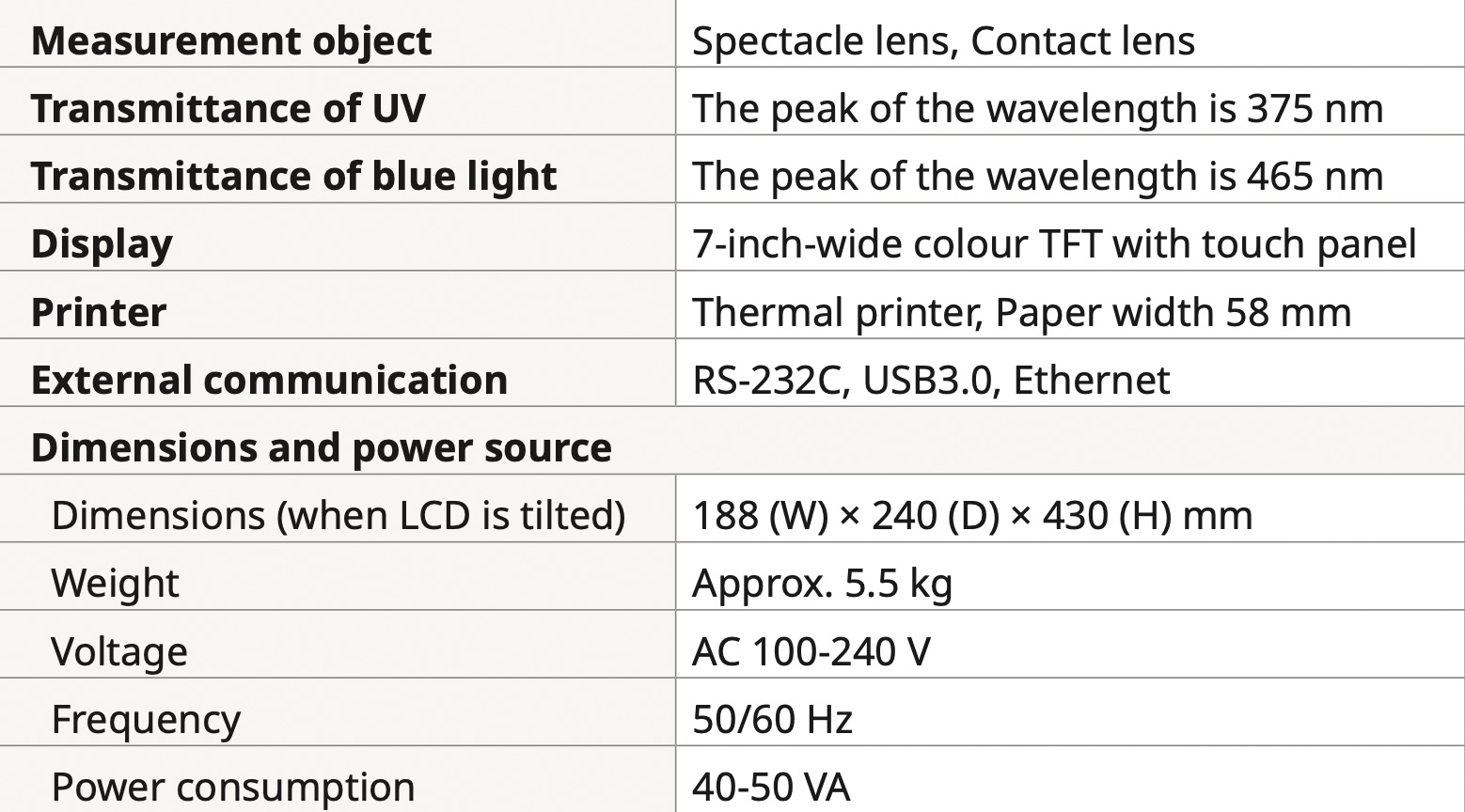

Measurement Object Spectacle lens, Contact lens, Optical lens
Transmittance of UV The peak of the wavelength is 375nm.
Transmittance of Blue light The peak of the wavelength is 465nm.

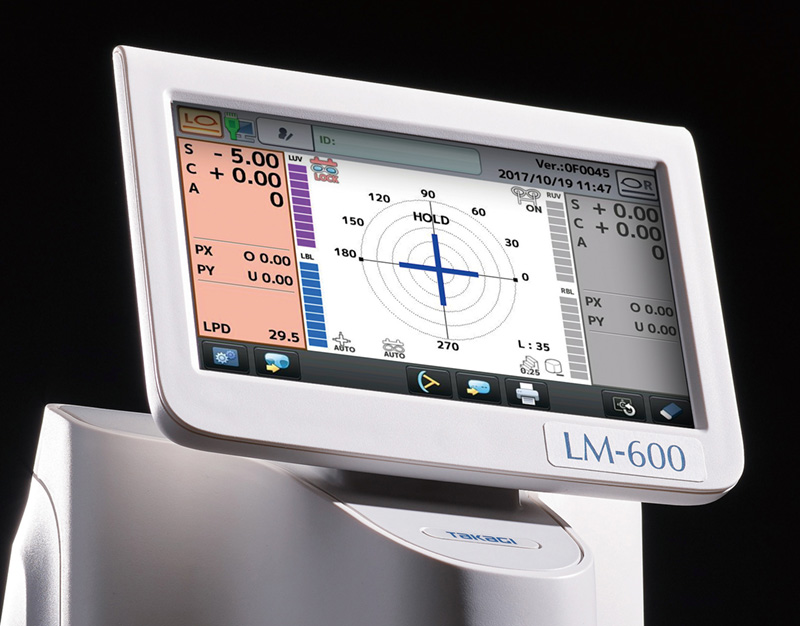

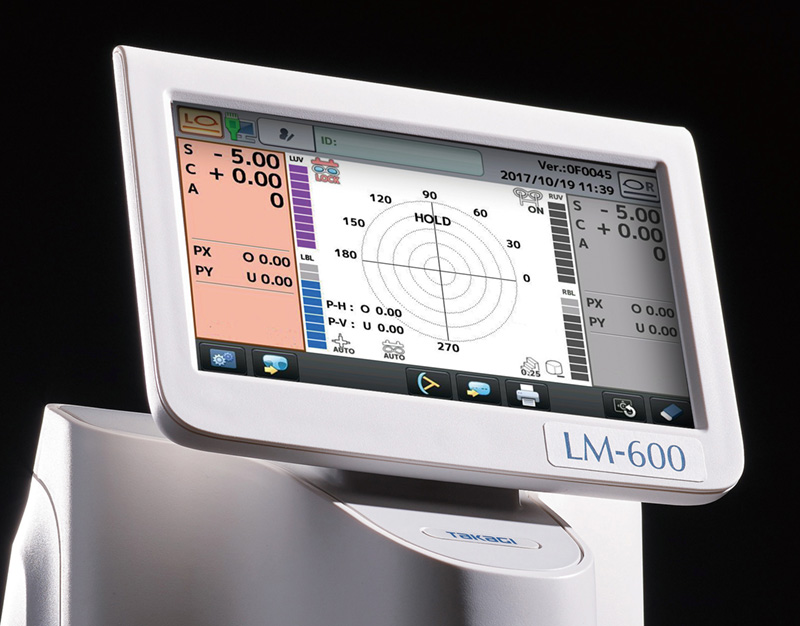

Display 7-inch-wide color TFT with touch panel
Printer Thermal Printer, Paper width 58mm
External Communication Port RS-232C, USB3.0, Ethernet
Dimensions and Power Source
Dimensions 188(W) × 240(D) × 430(H) mm
Weight Approx. 5.5kg
Voltage AC 100V-240V
Frequency 50/60 Hz
Power Consumption 40-50VA
